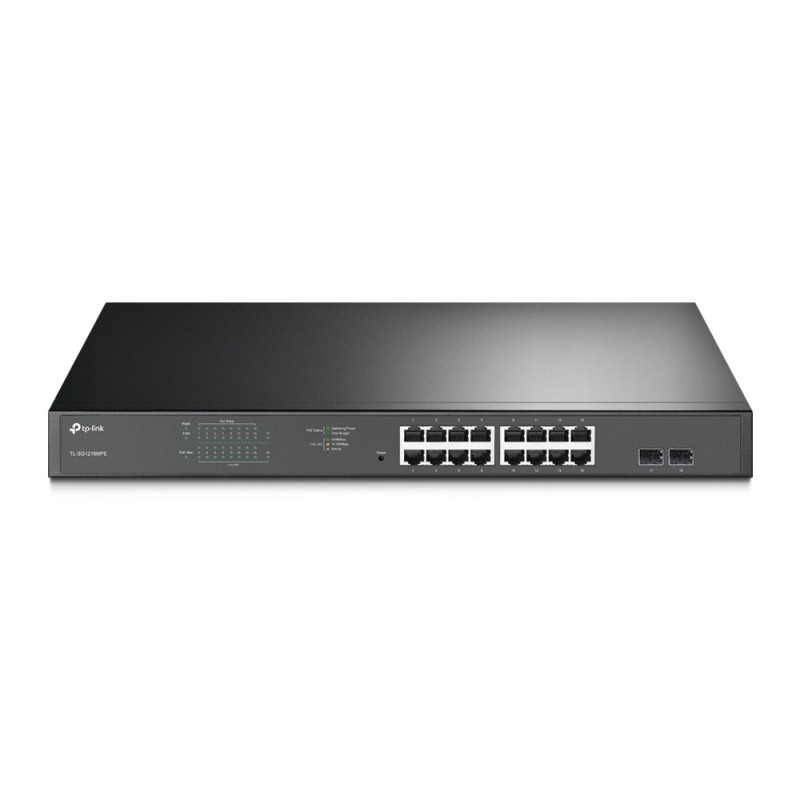

TP-LINK TL-SG1218MPE
  • TP-LINK TL-SG1218MPE
  • TP-LINK TL-SG1218MPE
  • TP-LINK TL-SG1218MPE
  • 16 10/100/1000Mbps RJ45 POE+ Ports Switch
  • PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
  • Port Priority is able to  guarantee the quality of sensitive application like video monitor
  • Intelligent power management can protect the switch from overload
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.


Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

QoS For Smooth Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cable types supportedCat3,Cat4,Cat5,Cat5e,Cat6
Cables includedAC
CertificationCE, FCC, RoHS
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth180 mm
Fiber ethernet cabling technology1000BASE-X
Heat dissipation741.15 BTU/h
Height44 mm
MAC address table8000 entries
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Number of VLANs32
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Power over Ethernet (PoE)Yes
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Switch typeManaged
Switching capacity36 Gbit/s
Width440 mm
