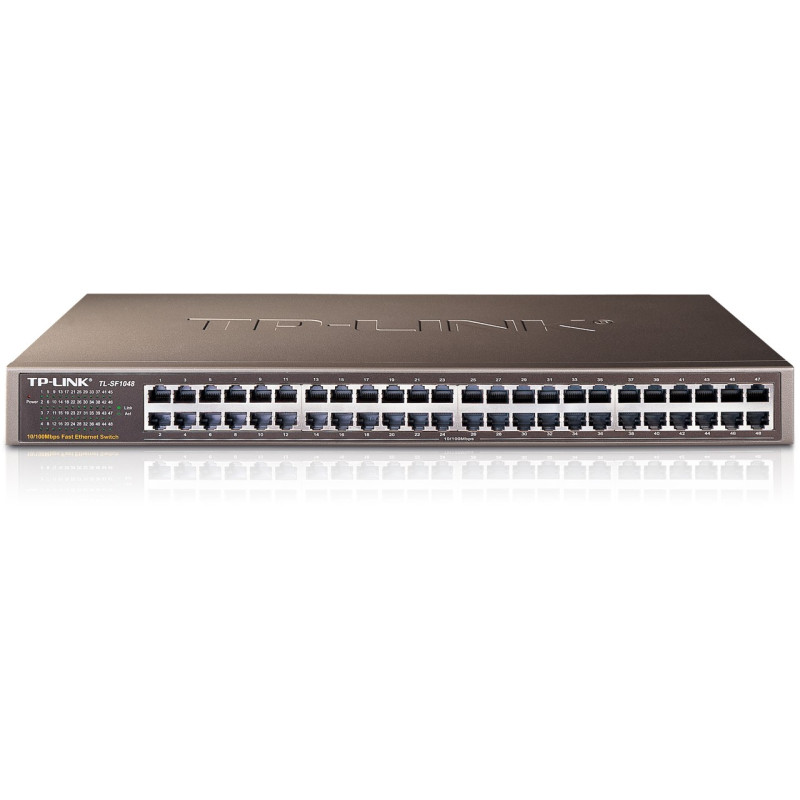

TP-LINK TL-SF1048 48-Port 10/100Mbps Rackmount Switch

More Info
Details
Spec Sheet

The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.

Bandwidth	9.6 Gbit/s
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Colour of product	Grey
Compatibility	FCC, CE
Connectivity LEDs	Yes
Copper ethernet cabling technology	100BASE-TX,10BASE-T
Dimensions (W x D x H)	439.4 x 259.1 x 43.2 mm (17.3 x 10.2 x 1.7 ")
Dimensions (WxDxH)	440 x 260 x 44 mm
Ethernet LAN (RJ-45) ports quantity	48
MAC address table	8000 entries
Management	Unmanaged
Maximum data transfer rate	0.1 Gbit/s
Mounting	Rackmount
Networking standards	IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)	10 - 90 %
Operating relative humidity range	10 - 90 %
Operating temperature (T-T)	32 - 104 °F
Operating temperature range (T-T)	0 - 40 °C
PoE	No
Ports quantity	48
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
Rack mounting	Yes
RJ45 Ports Qty	48
Size	19 "
Source data-sheet	Icecat.biz
Stackable	No
Storage relative humidity (H-H)	5 - 90 %
Storage relative humidity range	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Store-and-forward	Yes
Supported data transfer rates	10/100 Mbps
Supported network protocols	CSMA/CD, TCP/IP
Switch Speed	10/100
Switch type	Unmanaged
Switching capacity	9.6 Gbit/s
