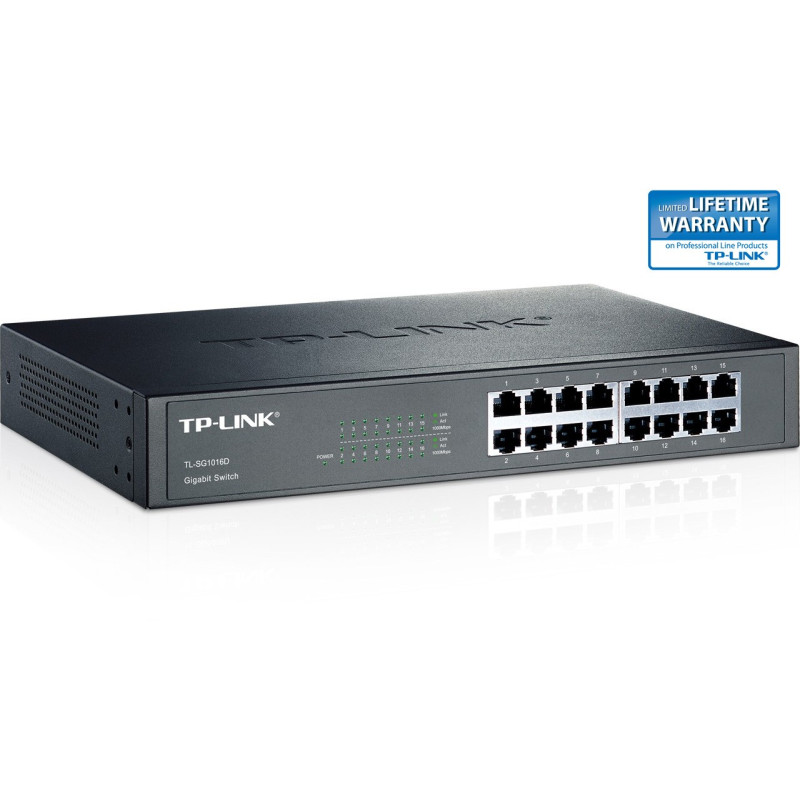

TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
  • TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
  • TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
  • TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
  • TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.



Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



GO GREEN WITH YOUR ETHERNET

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.



Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.



Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.



Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



Features

- Innovative energy-efficient technology saves power up to 40%;

- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode;

- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput;

- 32Gbps Switching Capacity;

- 10K Jumbo frame improves performance of large data transfers;

- Auto-MDI/MDIX eliminates the need for crossover cables;

- Supports MAC address auto-learning and auto-aging;

- Store and forward Switching scheme;

- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware;

- Desktop and Rack-mountable design;

- Plug and Play design simplifies installation.
Auto MDI/MDI-X Yes
Bandwidth 32 Gbit/s
Basic switching RJ-45 Ethernet ports quantity 16
Certification FCC, CE
Connectivity LEDs Yes
Connectivity technology Wired
DC-in jack Yes
Dimensions (WxDxH) 294 x 180 x 44 mm
Flow control support Yes
Full duplex Yes
Gigabit Ethernet (copper) ports quantity 16
MAC address table 8000 entries
Management Unmanaged
Maximum data transfer rate 1 Gbit/s
Mounting Desktop & Rackmount
Networking features Gigabit Ethernet
Networking standards IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating relative humidity range 10 - 90 %
Operating temperature (T-T) 32 - 104 °F
Operating temperature range (T-T) 0 - 40 °C
PoE No
Ports quantity 16
Power over Ethernet (PoE) No
Power over Ethernet (PoE) support No
Power requirements 100 - 240V, 50/60Hz
Power supply type AC
RJ45 Ports Qty 16
Source data-sheet Icecat.biz
Stackable Yes
Storage relative humidity (H-H) 5 - 90 %
Storage relative humidity range 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Storage temperature range (T-T) -40 - 70 °C
Store-and-forward Yes
Supported data transfer rates 10/100 Mbps
Supported network protocols CSMA/CD, TCP/IP
Switch Speed Gigabit
Switch type Unmanaged

You might also like

  • Keystone Jack Shuttered Fascia
    Keystone Jack Shuttered Fascia
  • CCS Cat6 UTP RJ45 Plug
    CCS Cat6 UTP RJ45 Plug
  • Cat5e UTP RJ45 Module (Euromod Size)
    Cat5e UTP RJ45 Module (Euromod Size)
  • Cat5e UTP RJ45 Booted Patch Lead
    Cat5e UTP RJ45 Booted Patch Lead
  • TP-LINK JetStream
    TP-LINK JetStream
  • TP-LINK 24-Port Gigabit Desktop/Rackmount Switch
    TP-LINK 24-Port Gigabit Desktop/Rackmount Switch
  • Cat6a External F/FTP LDPE Solid Cable (Reel)
    Cat6a External F/FTP LDPE Solid Cable (Reel)
  • Basic Termination Kit
    Basic Termination Kit
  • CCS SingleGang Surface Mount Back Box (32mm)
    CCS SingleGang Surface Mount Back Box (32mm)

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

TP-LINK 16-Port Gigabit Desktop/Rackmount Switch

TL-SG1016D, 16-port, Gigabit Ethernet, Full-Duplex, Auto MDI/MDIX

TL-SG1016D

Out of Stock

€76.42
€93.99 Inc VAT.
