600mm Deep Racky Rax Wall Mounted Cabinet

Please note: adding locking side panels to your cabinet may increase your delivery time.

Our range of 600mm wall mounted data cabinets have been designed with ease of installation and maintenance in mind. The high specification of the cabinet means it's suitable for almost any data comms or voice networking installation.

The data cabinets are available in sizes from 6u to 21u. Each data cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles. A gland plate is situated in the top and bottom of the cabinet to allow for easy cable access.

The cabinets feature ventilation slots top and bottom; have a lockable glass front door and removable sides. They are ideal for mounting Patch Panels and Switches. We also have a complete range of Cable Tidy solutions to keep your cabinet looking neat as well as a range of Power Distribution Units to power your kit.

The cabinet frameworks are finished in a high quality attractive black colour.

Details:

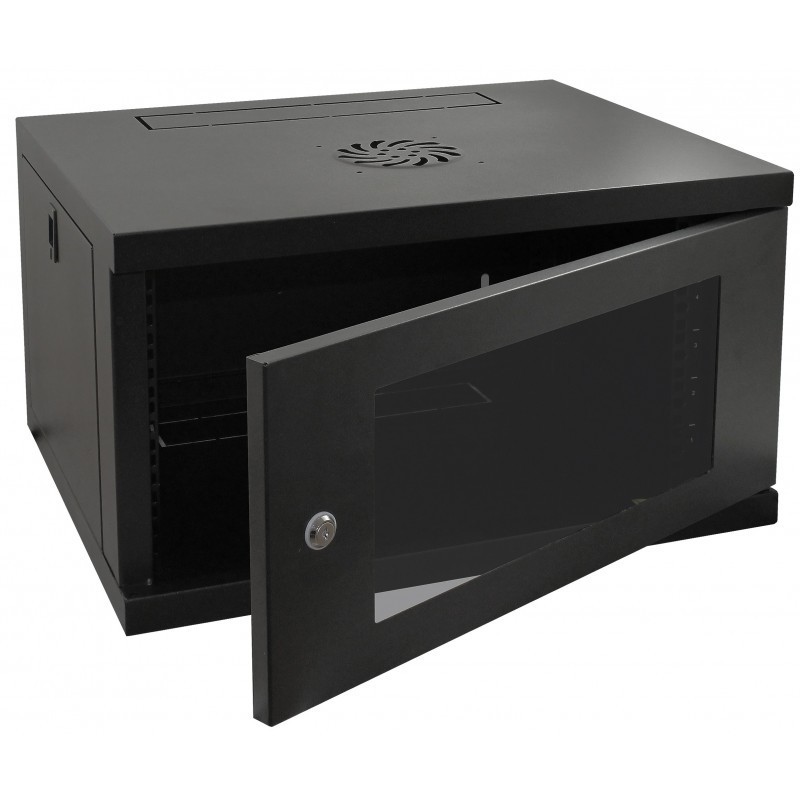

6u 600mm Wide 600mm Deep Data Cabinet shown for illustration

Features:

  • Fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Removable side panels
  • Cable entry gland plates top and bottom
  • Lockable and removable glass front door

Dimensions By U Height

U HeightSize (HxWxD)Weight
6U325x600x600 mm28 Kg
9U455x600x600 mm33 kg
12U590x600x600 mm38 Kg
15U720x600x600 mm45 Kg
18U855x600x600 mm51 Kg
21U990x600x600 mm58 Kg
Cable EntryTop & Bottom
ColoursBlack
ConstructionWelded
Depth600mm
Front Door TypeGlass Lockable/Removable
Internal Working Depth490mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsLockable/Removable
Width600mm
