Technical Headlines

Managed Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
10BASE-T, 100BASE-T
MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
DC

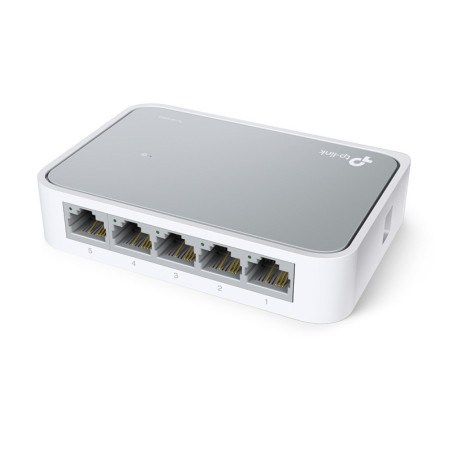

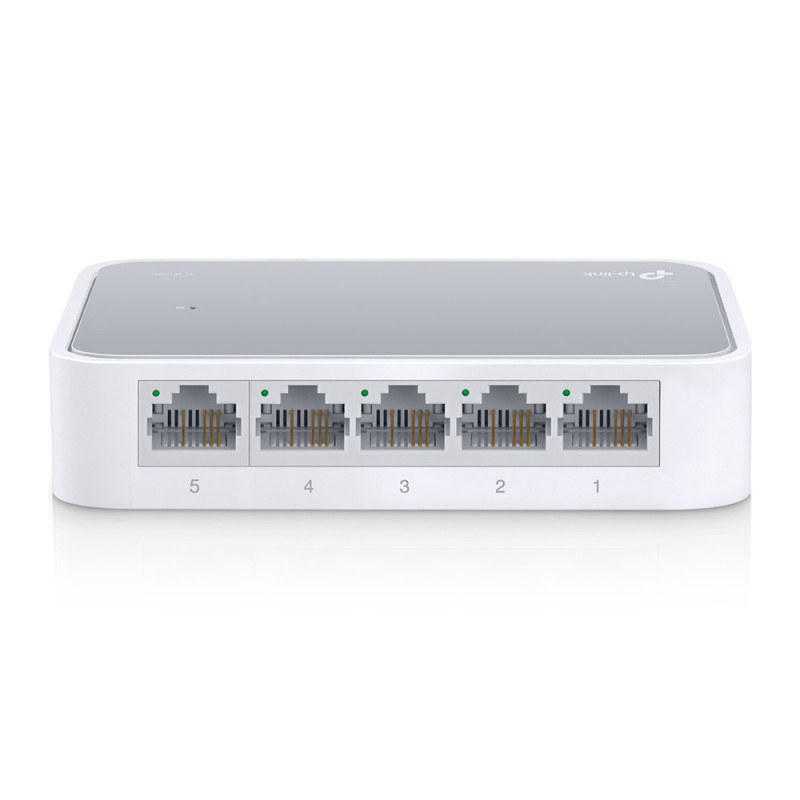

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.

High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

10G support	No
AC adapter included	Yes
AC input frequency	50 Hz
AC input voltage	220 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Cables included	AC
Certification	FCC, RoHs
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Depth	70 mm
Ethernet LAN data rates	10,100 Mbit/s
Flow control support	Yes
Full duplex	Yes
Heat dissipation	6.38 BTU/h
Height	22 mm
Input current	0.6 A
LED indicators	Yes
MAC address table	1000 entries
Networking standards	IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Package height	85 mm
Package weight	190 g
Package width	91 mm
Power consumption (typical)	1.87 W
Power over Ethernet (PoE)	No
Power source	DC
Quality of Service (QoS) support	Yes
Rack mounting	No
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Supported network protocols	CSMA/CD, TCP/IP
Switch type	Managed
Switching capacity	1.6 Gbit/s
User guide	Yes
Web-based management	Yes
Width	103.5 mm
Fanless	Yes
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
