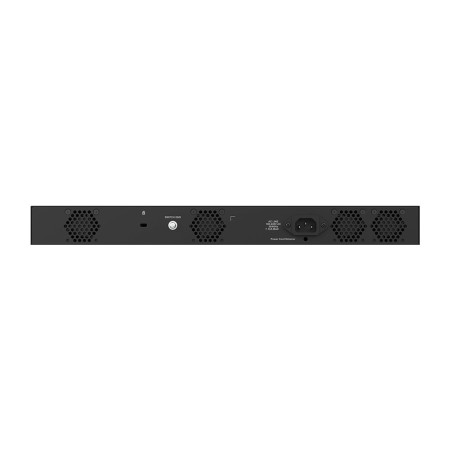

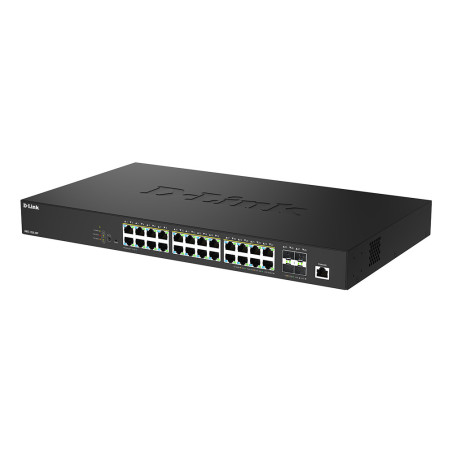

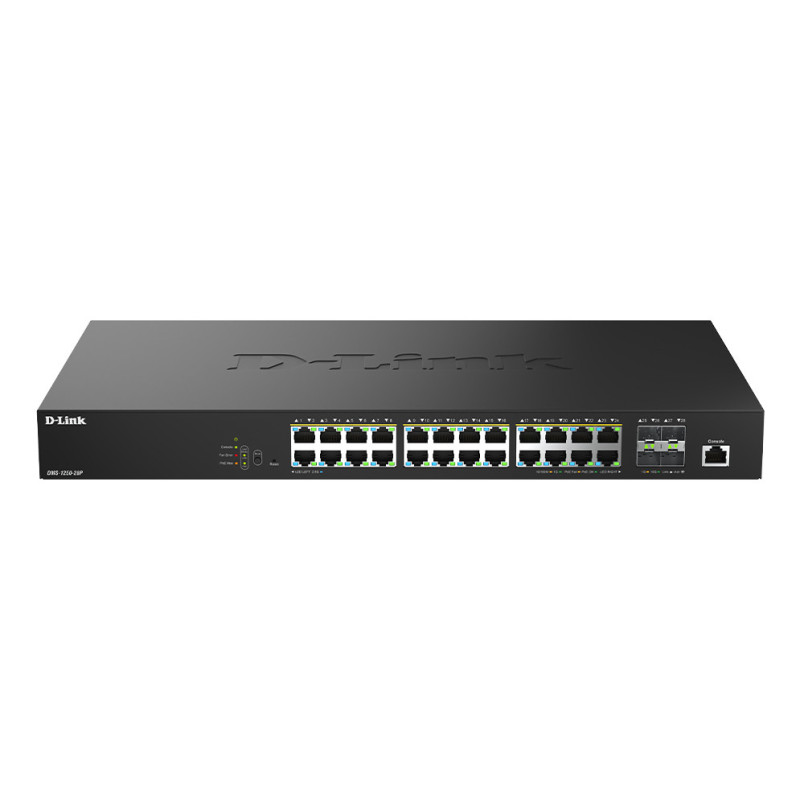

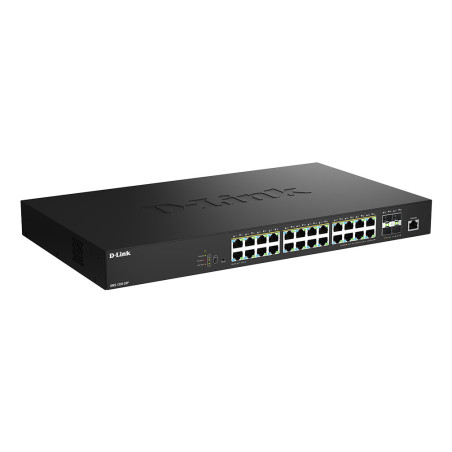

-Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports
  • -Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports
  • -Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports
  • -Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports
  • -Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports
Reasons to Buy
  • 24 Ports 2.5GE PoE for downlink
  • 4 Ports 10G SFP+ for uplink
  • PoE IEEE802.3af/at/bt options, power budget 475W
  • 6kV surge protection on all 2.5G ethernet ports
  • Support LACP 802.3ad Link Aggregation
  • Support Static Routing & Loopback Detection
  • Support Spanning Tree Protocol(STP/RSTP/MSTP)
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller


Technical Headlines
  • Managed L2 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • MAC address table: 16000 entries Switching capacity: 200 Gbit/s
  • Access Control List (ACL)
  • Rack mounting Stackable
  • AC Power supply included Power over Ethernet (PoE)


The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.

Highlights

Multi-Gigabit Ethernet Connection Delivers fast 2.5 Gbps performance using existing cabling, suitable for Wi-Fi 6 network deployments

10G Uplink Connections
Two 10-Gigabit Ethernet or SFP+ uplink ports allow for additional connections to a storage device or uplink network

Power over Ethernet
PoE+ (30W) or PoE++ (90W) options to simultaneously power multiple types of PoE devices with various power draw requirements
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Depth 250 mm
Flash memory 32 MB
Flow control support Yes
Height 44 mm
Internal memory 512 MB
LED indicators Yes
MAC address filtering Yes
MAC address table 16000 entries
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Number of VLANs 4096
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -5 - 50 °C
Packet buffer memory 16 MB
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 24
Power source AC
Quality of Service (QoS) support Yes
Rack mounting Yes
Source data-sheet Icecat.biz
Spanning tree protocol Yes
Stackable Yes
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 70 °C
Store-and-forward Yes
Switch layer L2
Switch type Managed
Switching capacity 200 Gbit/s
Web-based management Yes
Weight 4.17 kg
Width 440 mm

Specific References

EAN13
0790069477867

DMS-1250-28PB.pdf

D-Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports Data Sheet

D-Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports

D-Link 28-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 4 x 10G SFP+ Ports, Managed, L2, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting
In Stock
€1,251.04
€1,017.10 Ex. VAT
Reference: DMS-1250-28P/B
