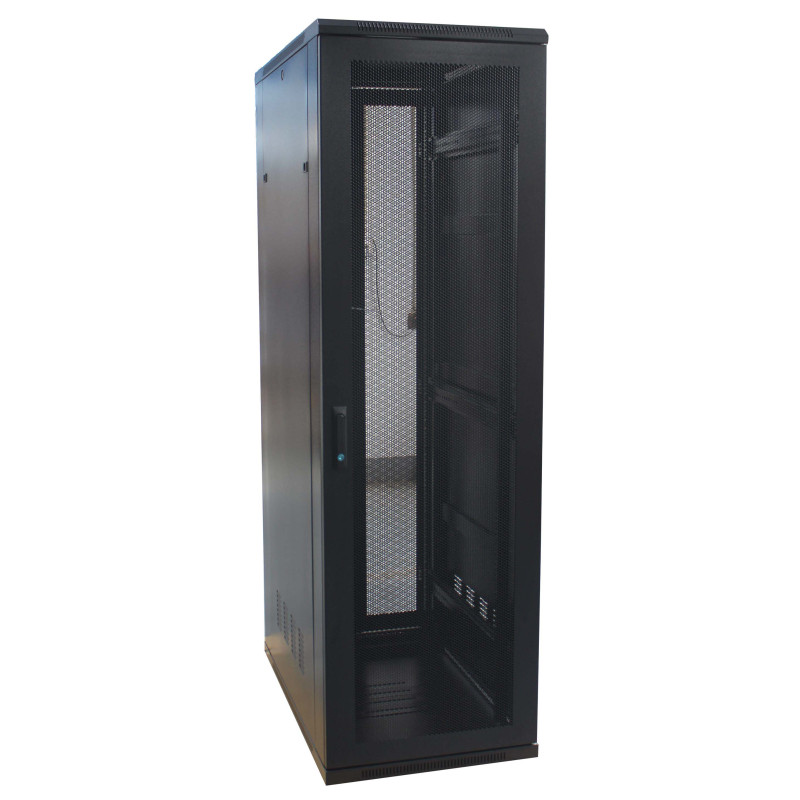

• RackyRax 600mm x 1000mm Server Cabinet Front closed

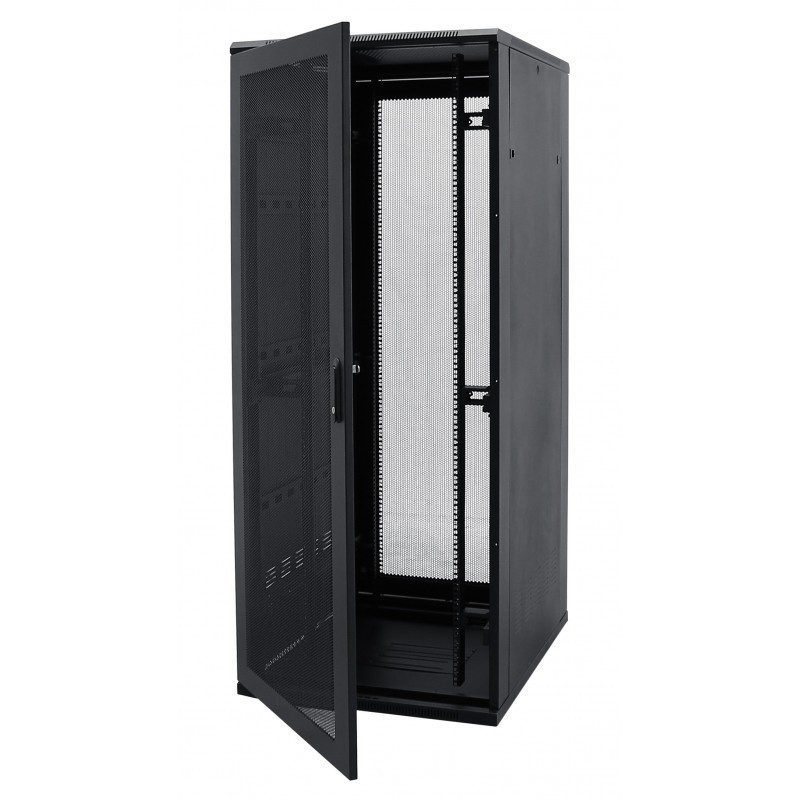

  • RackyRax 600mm x 1000mm Server Cabinet Front open
  • RackyRax 600mm x 1000mm Server Cabinet Side View
  • RackyRax 600mm x 1000mm Server Cabinet Front closed
  • RackyRax 600mm x 1000mm Server Cabinet Front open
  • RackyRax 600mm x 1000mm Server Cabinet Rear open
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

  • Reviews

Karen D - 19/11/2020

great for the price

RackyRax 19” Server Cabinets combine all the features of a premium Server Rack Cabinet including the aesthetically pleasing design, without the price-point to match.

The cabinets are fitted with quick release front and rear perforated doors (approximately 60% open), fitted with lockable swing handles. The side panels can be fitted with cabinet locks.

The large floor aperture gives maximum cable access, plus there is cabling access in the top. All apertures are fitted with blanking plates as standard.

These Server Cabinets are available in various configurations and are supplied fully assembled on a pallet, but all cabinets can be easily dismantled if required. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Each Server Cabinet is assembled in the UK using the highest quality components and boast an impressive load rating of up to 800kg (evenly distributed). The RackyRax range of Server Cabinets has been designed ensure easy installation and maintenance.

Cable access can be made through removable gland plates in the roof or through the open base.

Each RackyRax Cabinet is supplied fully assembled and ready to go

Features:

  • 800kg loading capacity (evenly distributed)
  • Lockable/removable mesh front door with steel surround
  • Lockable/removable mesh rear door
  • Removable steel side panels
  • Adjustable 19” mounting profiles front and rear
  • Optional roof mounted fan
  • Removable gland plates top and bottom for cable access
  • Transport Castors available

Dimensions By U Height

U HeightSize (HxWxD)Weight
12U635x600x1000 mm26.4 Kg
18U902x600x1000 mm39.6 Kg
211035x600x1000 mm46.2 Kg
24U1180x600x1000 mm52.8 Kg
27U1302x600x1000 mm59.4 Kg
39U1835x600x1000 mm85.8 Kg
42U1968x600x1000 mm92 Kg
45U2103x600x1000 mm99 Kg



A full range of accessories are available to complement the cabinet including Jacking feet, transport castors, shelves and vertical cable trays

Depth1000mm
Internal Working Depth800mm
Load capacity800kg (evenly distributed)
Side PanelsRemovable
Width600mm
ManufacturerRackyRax
