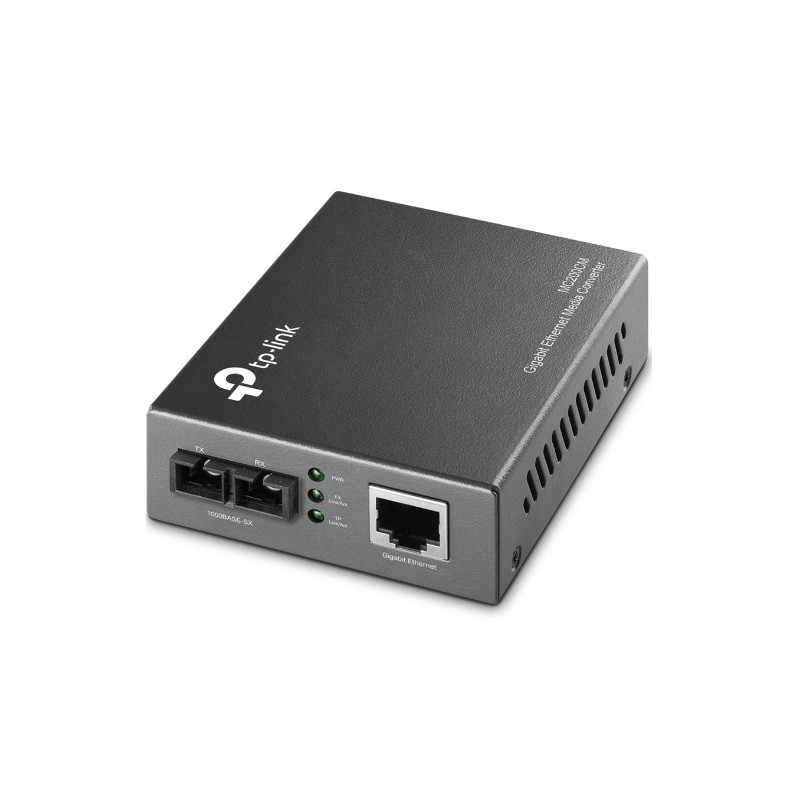

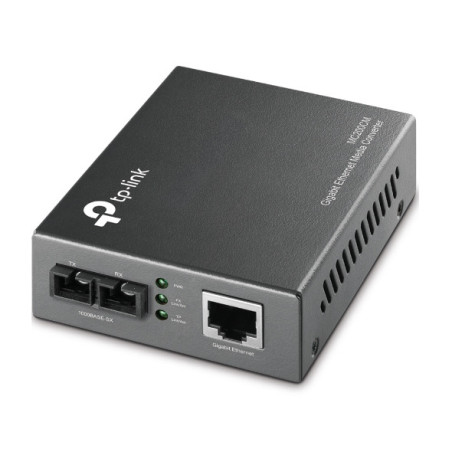

P-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black
  • P-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black
  • P-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black
  • P-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black
Reasons to Buy
  • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 1,800 feet (550m)


Technical Headlines
  • Wired
  • 1000 Mbit/s 550 m 850 nm
  • Ethernet LAN (RJ-45) ports: 1
  • Multi-mode Fiber ports quantity: 1 SC 50/125,62.5/125 µm
  • Black


The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data

Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
Auto MDI/MDI-X Yes
Cable types supported Cat5, Cat5e
Connectivity technology Wired
Depth 73 mm
Ethernet interface type Gigabit Ethernet
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Fiber optic connector SC
Height 27 mm
Internal No
LED indicators Yes
Manual Yes
Maximum data transfer rate 1000 Mbit/s
Maximum transfer distance 550 m
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Wavelength 850 nm
Width 95 mm
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Harmonized System (HS) code 85176990
Compliance certificates RoHS

Specific References

EAN13
0230494832935

MC200CM.pdf

TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black Data Sheet

TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black

TP-Link MC200CM, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e
(1)
In Stock
€36.30
€36.30 Ex. VAT
Reference: MC200CM
