Reasons to Buy

16 10/100M RJ45 ports
Green Ethernet technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 13-inch steel case

Technical Headlines

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 16
Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-T
MAC address table: 8000 entries Switching capacity: 3.2 Gbit/s
1U Rack mounting
AC Power supply included

What This Product Does

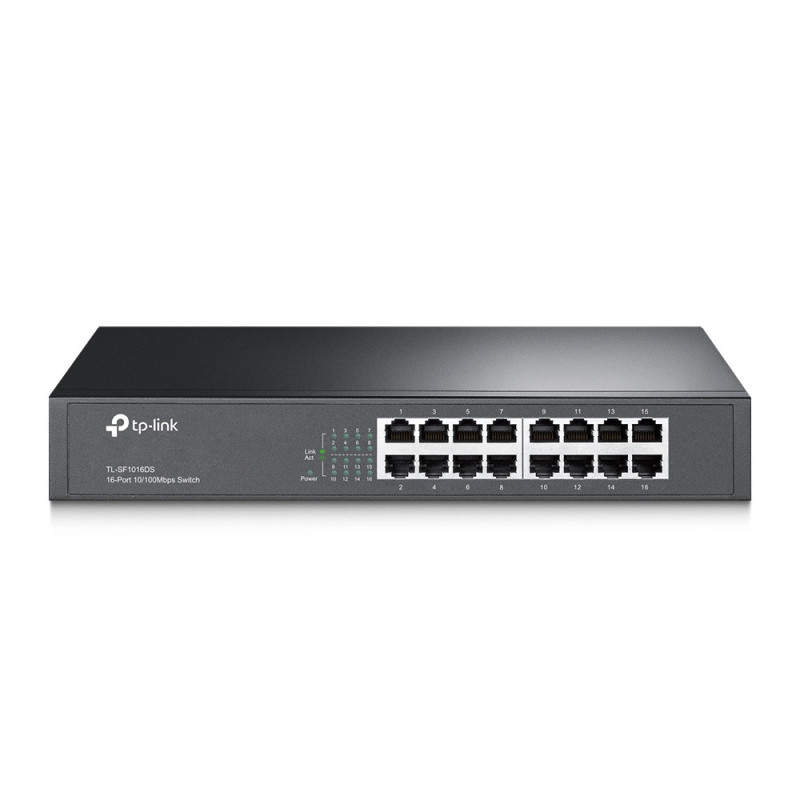

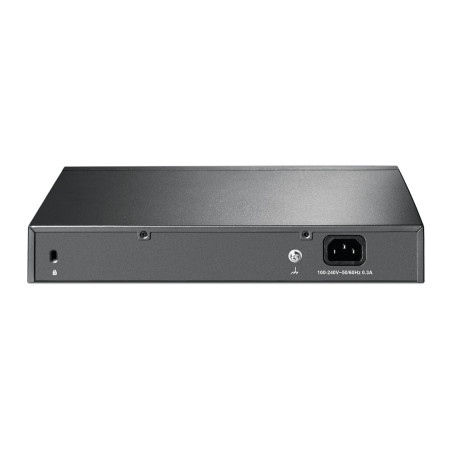

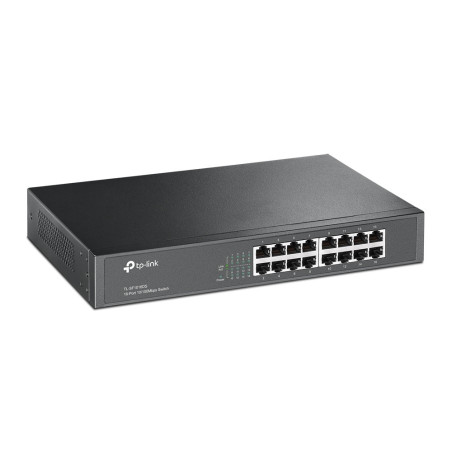

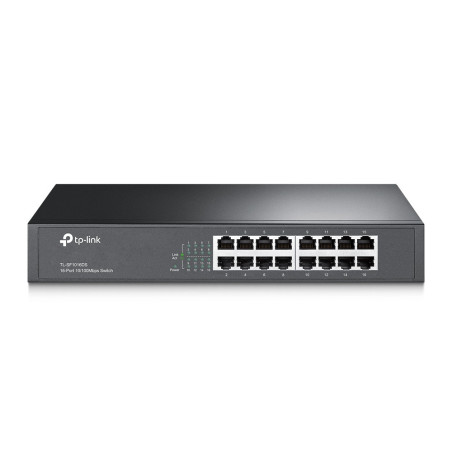

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Cables included	AC
Certification	● UL 60950-1\n● CAN/CSA-C22.2 No. 60950-1EN 60950-1\n● IEC 60950-1AS/NZS 60950-1GB4943\n● 47CFR Part 15 (CFR 47) Class A\n● AS/NZS CISPR22 Class A\n● CISPR22 Class A\n● EN55022 Class A\n● ICES003 Class A\n● VCCI Class A\n● EN
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Depth	180 mm
Heat dissipation	7.03 BTU/h
Height	990mm
Housing material	Zinc steel
MAC address table	96000 entries
Networking standards	Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T)	8 - 35 °C
Package weight	998 g
Package width	985.6 mm
Power source	PoE, DC, AC
Storage temperature (T-T)	8 - 85 °C
Supported network protocols	WEP, WPA/WPA2-PSK
Switching capacity	993.6 Gbps
Throughput	VHT20, VHT40, VHT80
Width	993 mm
