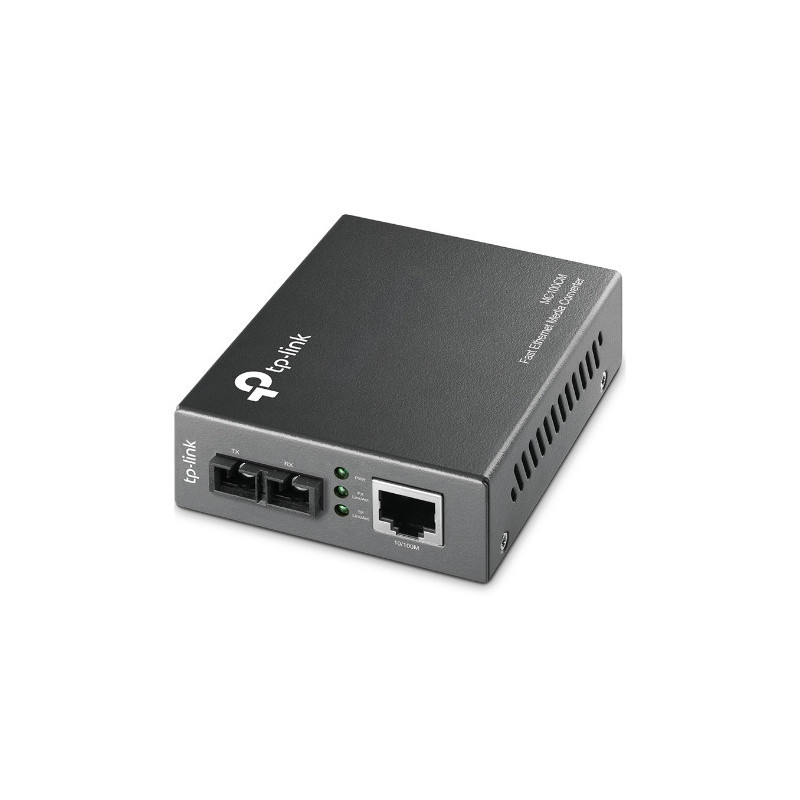

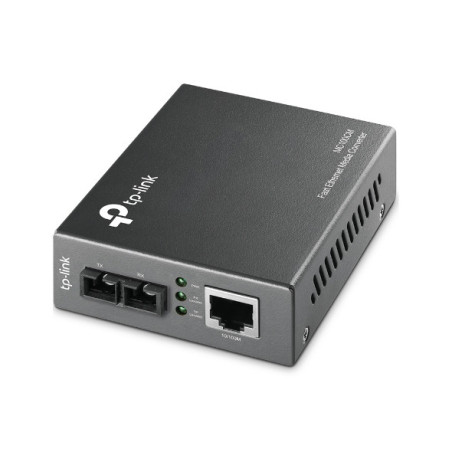

P-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black
  • P-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black
  • P-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black
  • P-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black
Reasons to Buy
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Extends fiber distance up to 1.2 miles (2km)


Technical Headlines
  • Wired
  • 100 Mbit/s 2000 m 1310 nm
  • Ethernet LAN (RJ-45) ports: 1
  • Multi-mode Fiber ports quantity: 1 SC
  • Black


The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
Auto MDI/MDI-X Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e
Connectivity technology Wired
Depth 73 mm
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100 Mbit/s
Fiber optic connector SC
Height 27 mm
Internal No
LED indicators Yes
Manual Yes
Maximum data transfer rate 100 Mbit/s
Maximum transfer distance 2000 m
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Wavelength 1310 nm
Width 95 mm
Harmonized System (HS) code 85176990
Compliance certificates RoHS

Specific References

EAN13
6935364030063

MC100CM.pdf

TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black Data Sheet

TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black

TP-Link MC100CM, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, 10,100 Mbit/s, Full, Half, Cat3, Cat4, Cat5, Cat5e, 2000 m
In Stock
€27.79
€27.79 Ex. VAT
Reference: MC100CM
