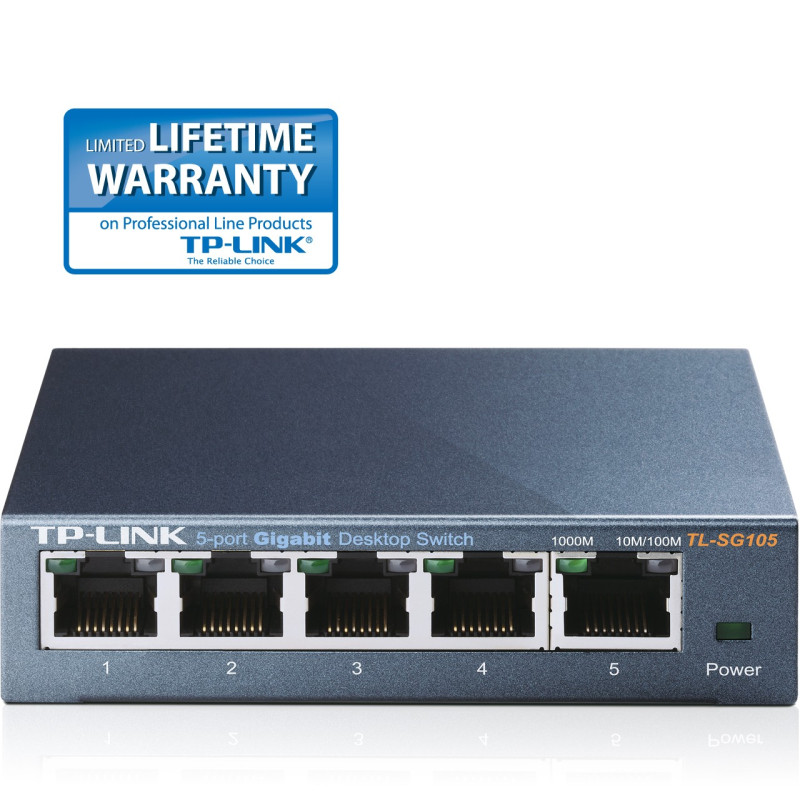

TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
What This Product Does

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.



Gigabit Switch

Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

- Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.

- Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 5
Certification CE, FCC, RoHS
Colour of product Black
Connectivity technology Wired
DC-in jack Yes
Depth 98 mm
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Full duplex Yes
Height 25 mm
LED indicators Yes
Management Unmanaged
Manual Yes
Maximum data transfer rate 2 Gbit/s
Mounting Desktop
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
PoE No
Power LED Yes
Power over Ethernet (PoE) No
Quality of Service (QoS) support Yes
RJ45 Ports Qty 5
Stackable No
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Supported data transfer rates 10/100/1000Mbps
Switch Speed Gigabit
Switch type Unmanaged
Switching protocols CSMA/CD
User guide Yes
Wi-Fi No
Width 99.8 mm

Michael Y - 03/12/2021

Great product and does the job perfectly.

You might also like

  • Cat5e FTP Shielded RJ45 Through Coupler
    Cat5e FTP Shielded RJ45 Through Coupler
  • Cat5e UTP RJ45 Booted Patch Lead
    Cat5e UTP RJ45 Booted Patch Lead
  • Cat6 Booted UTP RJ45 Patch Lead
    Cat6 Booted UTP RJ45 Patch Lead
  • 200mm Cable Ties - Pack of 100
    200mm Cable Ties - Pack of 100
  • 12 Port Cat5e 10" UTP Patch Panel
    12 Port Cat5e 10" UTP Patch Panel
  • TP-LINK 10/100Mbps Single-mode Media Converter
    TP-LINK 10/100Mbps Single-mode Media...
  • Cat5e UTP RJ45 Modules with Faceplate
    Cat5e UTP RJ45 Modules with Faceplate
  • External Cat6 UTP LDPE RJ45 Patch Leads
    External Cat6 UTP LDPE RJ45 Patch Leads
  • Cat5e Inline IDC Coupler Box
    Cat5e Inline IDC Coupler Box
  • CCS SingleGang Surface Mount Back Box (32mm)
    CCS SingleGang Surface Mount Back Box (32mm)

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

TP-LINK TL-SG105

5-port Metal Gigabit Switch, 5 10/100/1000M RJ45 ports, supports GMP Snooping, IEEE 802.1p QoS, Plug and Play, metal case

TL-SG105

Read Reviews (1)

In Stock

€30.56
€37.59 Inc VAT.
