Reasons to Buy
Technical Headlines
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Work with MC112CS WDM single fiber media converter
- Extends fiber distance up to 20km (12.5 miles)
Technical Headlines
- Wired
- 100 Mbit/s 20000 m
- 10BASE-TX, 100BASE-FX, 100BASE-TX
- Ethernet LAN (RJ-45) ports: 1
- Single-mode Fiber ports quantity: 1 SC
- Black
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat3, Cat4, Cat5 |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-FX, 100BASE-TX |
| Depth | 73 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fiber optic connector | SC |
| Height | 27 mm |
| Internal | No |
| LED indicators | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 20000 m |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Width | 95 mm |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
Specific References
- EAN13
- 6935364030421

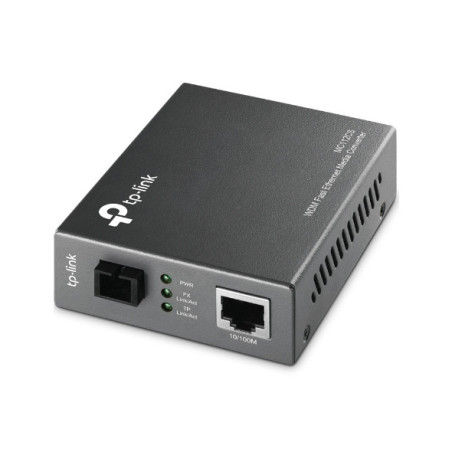

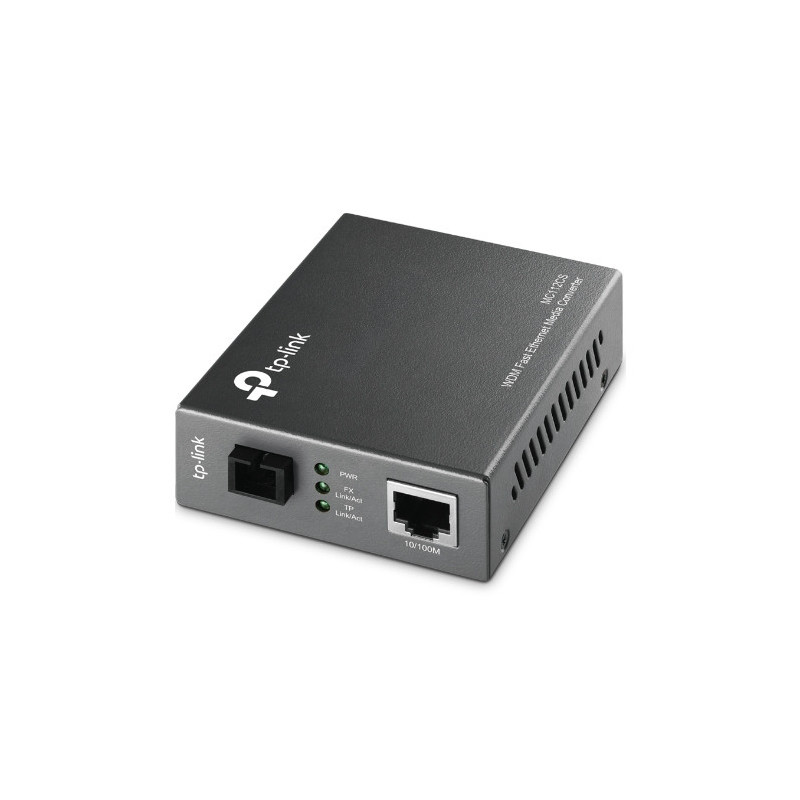

TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black
TP-Link MC112CS, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, 10,100 Mbit/s, 10BASE-TX, 100BASE-FX, 100BASE-TX, Full, Half, Cat3, Cat4, Cat5
€32.14
€32.14 Ex. VAT
