Reasons to Buy

6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Plug and play with no configuration required

Technical Headlines

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 6
Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX, 100BASE-T
MAC address table: 2000 entries Switching capacity: 1.2 Gbit/s
DC/PoE Power supply included Power over Ethernet (PoE)

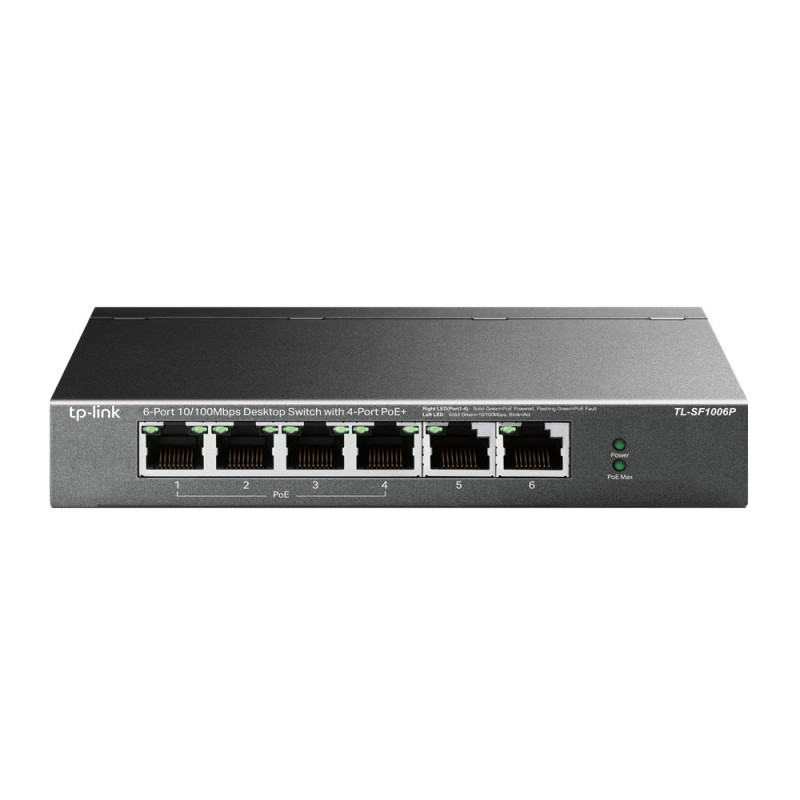

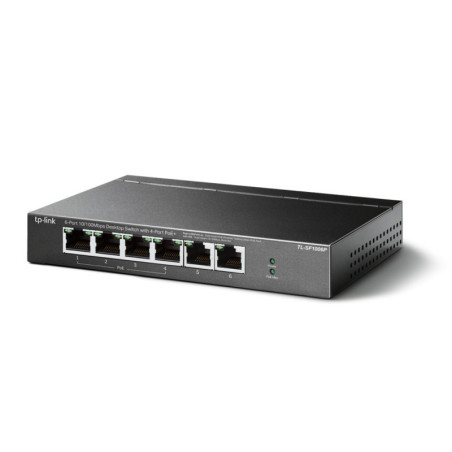

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

10G support	No
AC adapter included	Yes
AC input frequency	50 Hz
AC input voltage	220 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Certification	FCC, CE, RoHS
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
Depth	101 mm
Height	990mm
Housing material	Zinc steel
Input current	1.31 A
MAC address table	96000 entries
Networking standards	Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T)	8 - 35 °C
Package weight	998 g
Package width	985.6 mm
Power source	PoE, DC, AC
Storage temperature (T-T)	8 - 85 °C
Switching capacity	1.2 Gbit/s
Width	993 mm
