Easily Extend Ultra-Fast, Stable Wi-Fi to Every Room

Stably and efficiently transmit network signals anywhere with a power outlet via

your home’s existing wiring.

Three Gigabit Ethernet Ports

Provide warp speed wired connections for 4K video and IPTV streaming,

lag-free gaming, and more.

AV1300 Powerline with 2×2 MIMO

Establish multiple simultaneous connections to improve data transfer rates,

stability, and coverage.

Plug and Play

Powerline adapters and extenders must be deployed in a set of two or more and

be connected to the same electrical circuit.

One-Touch Wi-Fi Configuration

Copy wireless settings from a router to the extender using the same SSID and

password with just a tap.


HomePlug AV2 – Provides up to 1300 Mbps high speed

data transmission over a home’s existing electrical wiring

· Wireless AC Standard – Dual-band Wi-Fi speeds of 300

Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz


· Multiple Gigabit Ports – Three gigabit Ethernet ports for

game consoles, smart TVs, or media receivers

Wi-Fi Range

Expansive Coverage – Utilizes any household power circuit

to deliver data over distances of up to 300 meters


2X2 MIMO – Establishes simultaneous connections,

providing more stable connections and expansive


· Mains Filter – The integrated mains filter reduces electrical

noise interference and improves powerline communication


Ease of Use

Wi-Fi Clone – Allows powerline extenders to copy the

network name (SSID) and password from your router with

one simple touch

· Wi-Fi Move – Automatically adopts Wi-Fi settings from

your existing powerline network

· TP-Link tpPLC – Easily manages your network using the

intuitive tpPLC App or the tpPLC Utility

· Plug, and Play – Set up your powerline network in minutes


· Pair Button – Provides a connection with 128-bit AES

encryption, at the touch of “Pair” button

· Parental Controls– Manage when and how connected

devices can access the internet
Antenna type internal
Built-in power socket Y
Certification FCC, UL, RoHS
Depth 42 mm
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Height 152 mm
LED indicators LAN,Power
Linux operating systems supported Y
Mac compatibility Y
Mac operating systems supported Y
Manual Y
Maximum data transfer rate 1300 Mbit/s
Maximum operating distance 300 m
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Plug and Play Y
Power consumption (typical) 11 W
Quantity per pack 2 pc(s)
Quick installation guide Y
Security algorithms 128-bit WEP,WEP,WPA-PSK,WPA2-PSK
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Wi-Fi N
Width 75 mm
Windows operating systems supported Windows 10,Windows 7,Windows 8,Windows XP


TP-LINK TL-WPA8631P KIT Data Sheet

Download (1.08M)

You might also like

  • 1u Brush Strip Panel
    1u Brush Strip Panel
  • External Cat6 UTP LDPE Solid Cable
    External Cat6 UTP LDPE Solid Cable
  • Intellinet 711074
    Intellinet 711074
  • Shielded FTP Cat5e RJ45 Ethernet Patch Lead
    Shielded FTP Cat5e RJ45 Ethernet Patch Lead
  • Basic Cat6 Termination Kit
    Basic Cat6 Termination Kit
  • 1u Horizontal 4 Ring Cable Tidy Panel
    1u Horizontal 4 Ring Cable Tidy Panel
  • IEC C14 Male - IEC C13 Female Power Extension/Jumper Lead
    IEC C14 Male - IEC C13 Female Power...
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU
  • RackyRax 550mm Deep Wall Mounted Data Cabinet
    RackyRax 550mm Deep Wall Mounted Data Cabinet

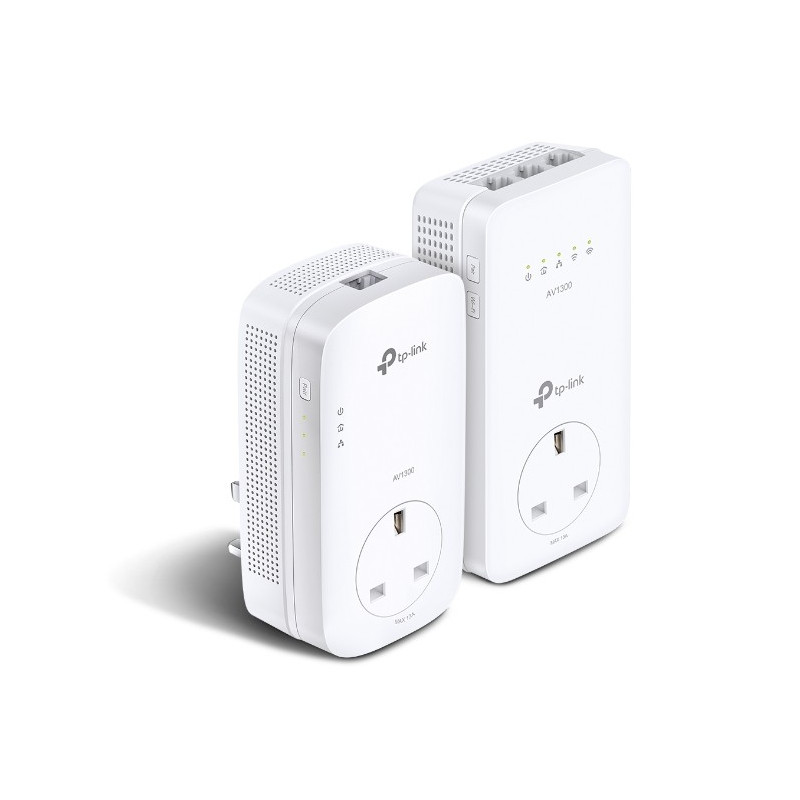

AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
