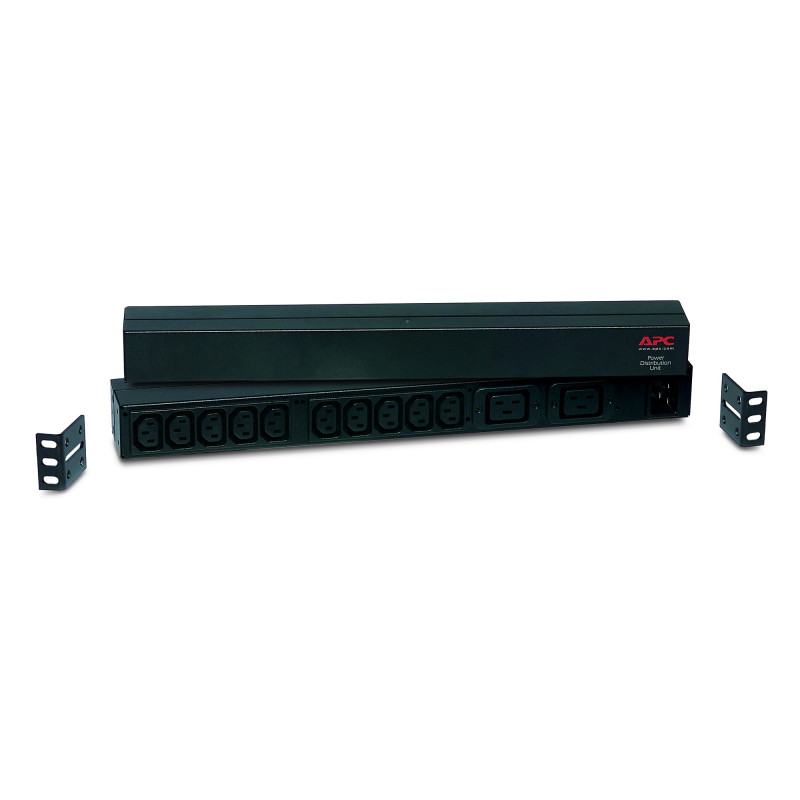

APC Basic Rack PDU AP9559
Description:


APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19


Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities


Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual



Output Voltage(s) (main only) - 120, 208, 230 V


Maximum Total Current Draw per Phase - 16 A


Output Connections - (10)IEC 320 C13; (2)IEC 320 C19


Always on Outlets - 12

Overload Protection


Input:


Nominal input voltage - 120, 208, 230


Input frequency (Hz) - 50/60 Hz


Input Connection Type - IEC-320 C20


Cord Length 8.2 feet ( 2.5 meters )


Acceptable Input Voltage - 90-250 VAC


Maximum Line Current per phase - 16.0 A


Maximum Input Current per phase - 16.0 A


Load Capacity - 3680




Cable length2.5 m
Colour of productBlack
Dimensions (WxDxH)447 x 57.2 x 44.5 mm
I/O portsOutput Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 45 °C
Operating temperature range (T-T)0 - 45 °C
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight980 g

You might also like

  • Cage Nuts & Bolts - Pack of 50
    Cage Nuts & Bolts - Pack of 50

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Rack PDU. Basic. Zero u. 32a. 230v. (20)c13 & (4)c19
    APC Rack PDU. Basic. Zero u. 32a. 230v....
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC RACK PDU BASIC 1 U 16A 230V

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

AP9559

In Stock

€430.51
€350.01 Ex VAT.
