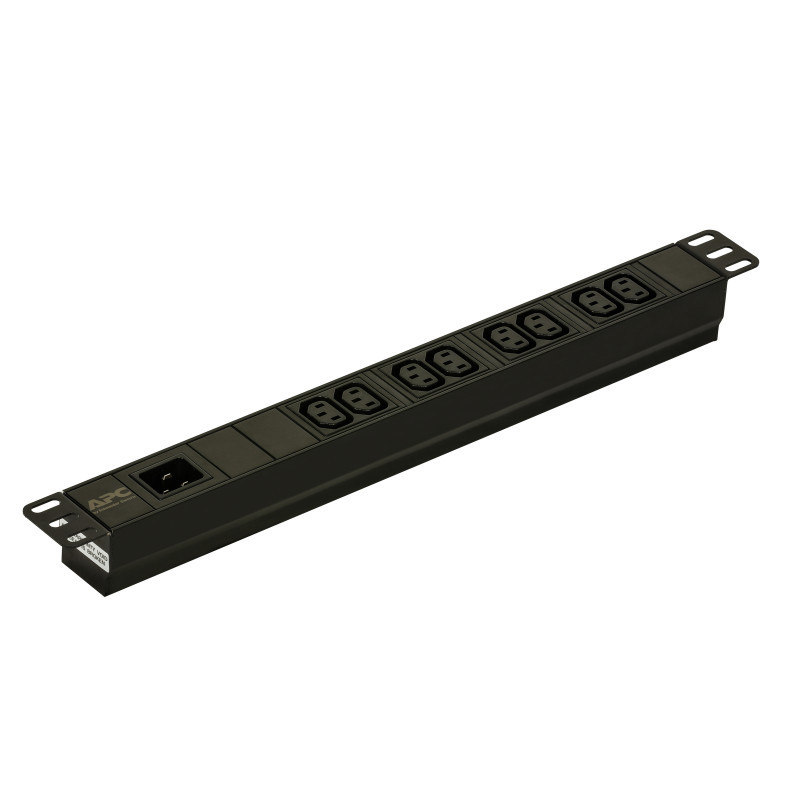

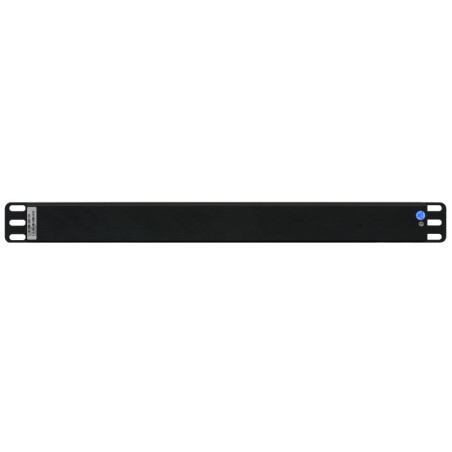

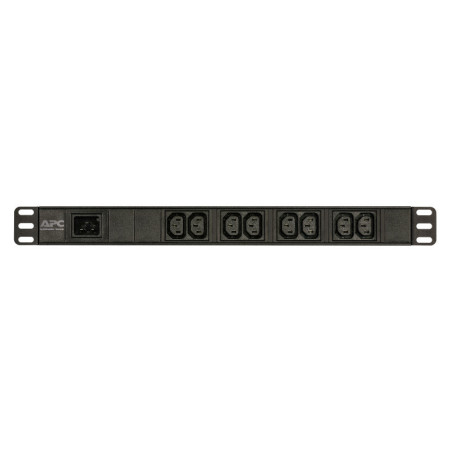

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.
- Single-phase Basic 1U Black
- 8 AC outlet(s) C13 coupler
- 3680 W
APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Cable length | 2.5 m |
| Certification | CE, TUV |
| Depth | 44 mm |
| Height | 44 mm |
| Housing material | Aluminium |
| Load capacity | 3680 VA |
| Manual | Yes |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| Mounting | Horizontal |
| Nominal input voltage | 200/208/230 V |
| Nominal output voltage | 208/230 V |
| Non-operating altitude | 0 - 15000 m |
| On/off switch | No |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 45 °C |
| Package height | 150 mm |
| Package weight | 1.18 kg |
| Package width | 560 mm |
| PDU types | Basic |
| Power plug | C20 coupler |
| Rack capacity | 1U |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Type | Single-phase |
| Weight | 580 g |
| Width | 482 mm |
| Compliance certificates | RoHS |
Specific References
- EAN13
- 0731304404996
APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet
APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet, Basic, 1U, Single-phase, Horizontal, Aluminium, Black
€170.67
€138.75 Ex. VAT
