TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
- Wake-on-LAN supporting
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
- Wake-on-LAN supporting
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving
| Cabling technology | 10/100/1000BaseT(X) |
| Certification | FCC, CE |
| Colour of product | Green |
| Compatibility | PC&Notebook |
| Compatible operating systems | Win 98se/Me/2000/XP/XP64/Vista Linux |
| Compliance industry standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| Connectivity technology | Wired |
| Data transfer rate | 1 Gbit/s |
| Data transfer rate (max) | 2000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Host interface | PCI-E |
| I/O ports | 1xRJ45 |
| Interface | Ethernet |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | No |
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage relative humidity range | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Supported data transfer rates | 10/100/1000 Mbps |
| Supported network protocols | CSMA/CD, TCP/IP |
| Supported protocols | CSMA/CD, TCP/IP |
| Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows |
| Wireless LAN connection | Yes |
Specific References
- EAN13
- 6935364001049

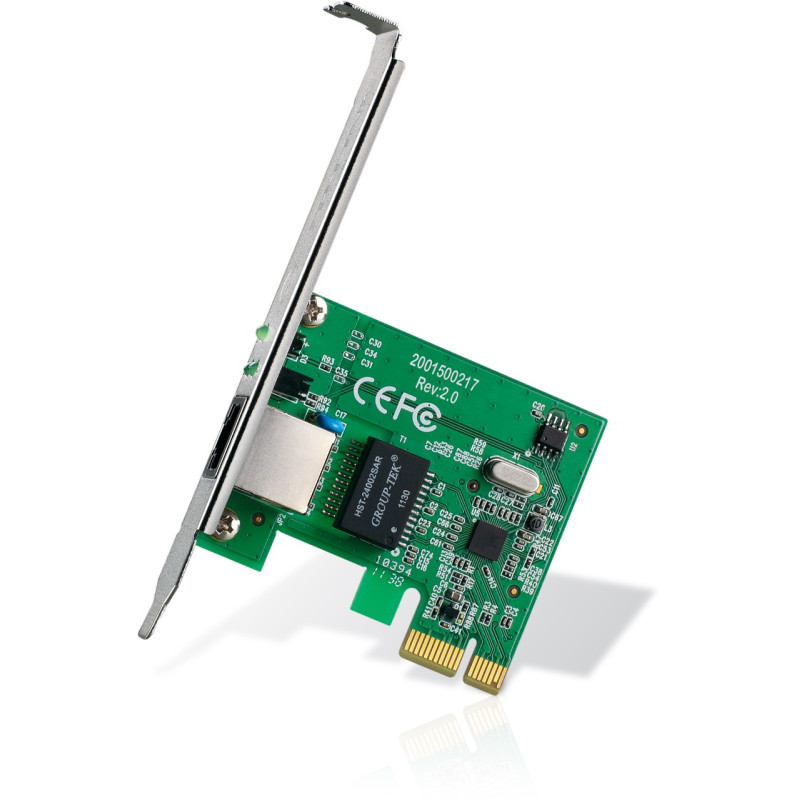

TP-LINK TG-3468
Gigabit PCIe Network Adapter
£12.21
Tax excluded
