TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| 10G support | No |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 111.7 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Firmware upgradeable | Y |
| Flow control support | Y |
| Heat dissipation | 499.98 BTU/h |
| Height | 25.4 mm |
| LED indicators | PoE,Power,System |
| MAC address filtering | Y |
| MAC address table | 8000 entries |
| Manual | Y |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Networking standards | IEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3x |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 4.1 MB |
| Power over Ethernet (PoE) | Yes |
| Power source | DC/PoE |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Security algorithms | EAP-MD5,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSL/TLS |
| Source data-sheet | . |
| Spanning tree protocol | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 32 Gbit/s |
| Web-based management | Y |
| Width | 286 mm |
| Fanless | Y |
| Cloud-managed | Y |
| MAC address entries | Dynamic MAC address entries,Static MAC address entries |
Specific References
- EAN13
- 4897098689493

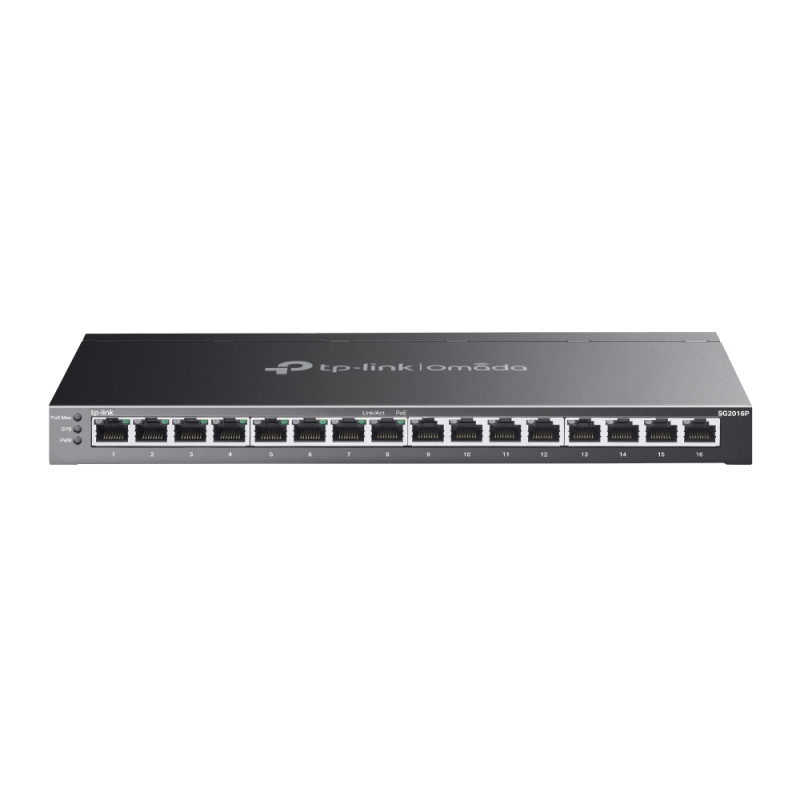

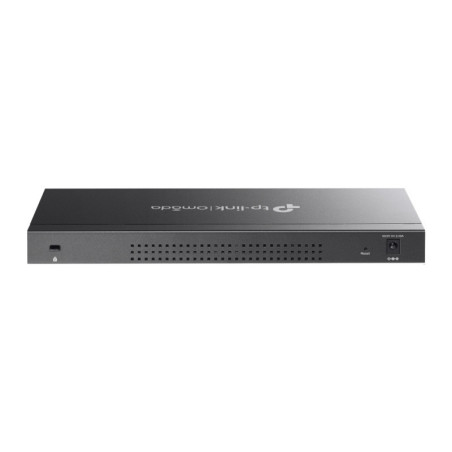

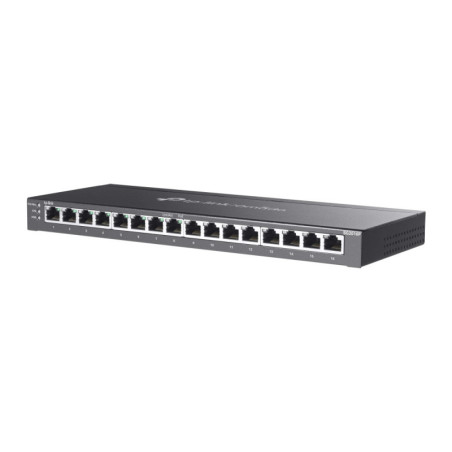

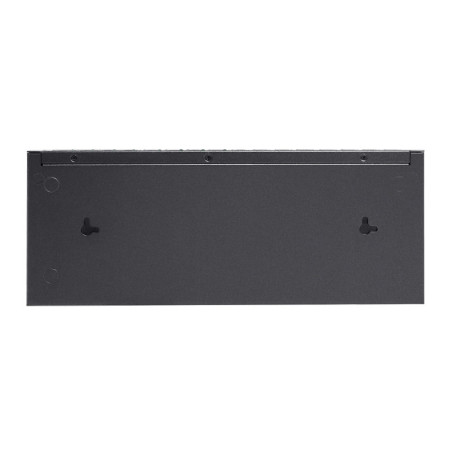

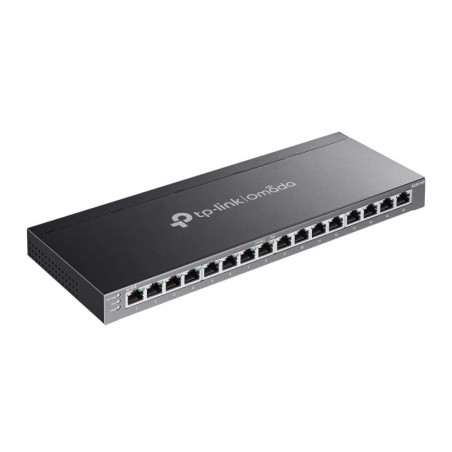

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
16× 10/100/1000 Mbps RJ45 PoE+, 32 Gbps, 8K MAC, 9 KB Jumbo, 286×111.7×25.4 mm
€286.16
€232.65 Ex. VAT
