CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet
  • CCS 600mm x 1000mm Server Cabinet

Connectix Server Cabinets have been designed to offer the optimum housing for servers and networking hardware. Mesh front and rear doors plus a vented roof add up to offer maximum ventilation; whilst the lockable doors all round provide essential security.

All doors are fully removable with quick release hinges for easy equipment installation, and the large floor aperture gives maximum cable access.

Connectix server cabinets are available in various configurations and are supplied fully assembled. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Server Cabinet Details (move mouse over to explore):

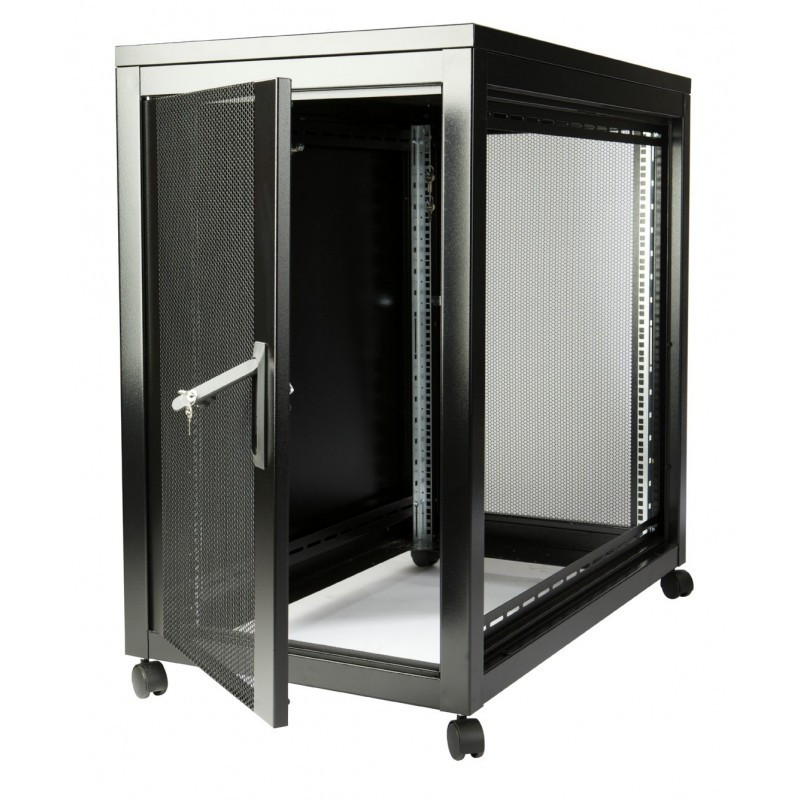

42u 600 x 1000 Cabinet shown for illustration purposes.

Features:

  • Full height adjustable 19" mounting prfofiles front and rear
  • Fully removable sides
  • Mesh doors front anr rear allows for maximum ventilation
  • Lockable doors all around provide excellent security
  • High quality paint finish
  • Supplied fully assembled



Compatible with:

Dell:
tick Dell Poweredge Rackmount Servers with ReadyRails
tick Dell Poweredge Rackmount Servers with RapidRails
tick Dell Poweredge Tower Servers (requires either a fixed shelf or telescopic shelf)
HP
tick HP ProLiant DL Servers
tick HP ProLiant ML Servers (requires either a fixed shelf or telescopic shelf)
Fujitsu
tick Fujitsu Primergy RX Rack Servers
tick Fujitsu Primergy TX Tower Servers (requires either a fixed shelf or telescopic shelf)
Lenovo
tick Lenovo Rack Servers
tick Lenovo Tower Servers (requires either a fixed shelf or telescopic shelf)
IBM
tick IBM System X Rackmount Servers
tick IBM System X Tower Servers (requires either a fixed shelf or telescopic shelf)
Cisco
tick Cisco UCS Rack Servers

If unsure or you need any advice with your rack, please call sales on 01376 333 500

Dimensions By U Height

U Height Size (HxWxD)
12U 548x600x1000 mm
18U 948x600x1000 mm
27U 1348x600x1000 mm
42U 2015x600x1000 mm
45U 2148x600x1000 mm
75U 2237x600x1000 mm
Cable Entry Top & Bottom
Colours Black
Construction Bolted
Depth 1000mm
Front Door Type Vented Mesh
Internal Working Depth 900mm
Mounting Profiles 19" Adjustable Front & Rear
Side Panels Lockable/Removable
Width 600mm
