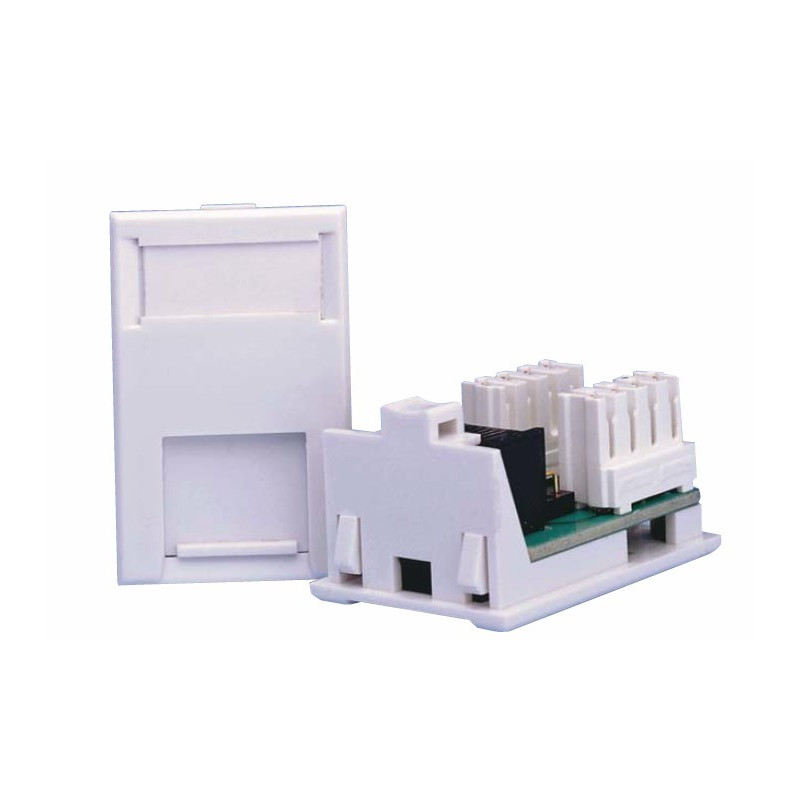

• Cat5e UTP RJ45 Modules - LJ6C Size
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

The Enhanced Category 5 compact LJ6C module is designed to provide one of the shallowest outlets on the market. They are the ideal solution wherever back box depth is a problem.

LJ6C modules are ideal for use in floorboxes, or any application that has an industry standard LJ6C aperture. Single and dual gang faceplates are available for up to four LJ6C modules in addition to panels suitable for Ackerman floorboxes. Their attractive high gloss finish
and easy to use labelling system make them popular with both installers and users alike.

Installation is made easy with individual colour codes and the use of industry standard IDC’s.

Enhanced Category 5 LJ6C modules offer extended powersum characteristics and exceed the TIA/EIA-568- B specifications. When combined with Enhanced Category 5 patch Panels and UTP cable the link will perform well in excess of the Enhanced Category 5
specification.

Details:

Features:

  • Shallow design requires minimal back-box depth
  • Industry standard LJ6C size
  • Industry standard IDCs
  • Individually QA tested


Specification

  • Width - 25mm
  • Depth - 19.5mm
  • Height - 38.5mm
  • Back-box - Depth Minimum 20mm with panel 15mm with faceplate
  • Mounting Hole Size - 22.3mm x 36.7mm
  • Panel Thickness - 2.0mm max
  • Material - Polycarbonate/ABS thermoplastic resin with grade UL94 VO at 1.5mm flame retardency
  • Finish - High gloss
  • IDC Labels - Individual colour code
  • IDC Blocks - 4 way industry standard IDC blocks
  • Conforms to - ANSI/TIA-568-C Enhanced Category 5 Specification
Faceplate IncludedNo
Module Size25mm x 38.5mm LJ6C
ShieldedNo
TerminationIDC Punchdown
EAN5056045700226
ManufacturerConnectix Cabling Systems
