shopping_basket
1 Pot = 100 plugs
1 Box = 20 Packs
The FTP Cat 6 modular plugs are made from high quality engineering plastic with brass gold over nickel plating contacts.
For best results use with the 'Easy' crimp tool, it allows you to cut, strip and terminate a plug all in one. The Crimp tool Trims the excess wires as it crimps.
Features & Benefits
- Easy to verify RJ45 568A or 568B colour code
- Gold Plated Contacts
- For best results use with Connectix Easy RJ45 Crimp Tool
- Cat 6 FTP Performance
See below for the 4 step 'Easy' Instructions
 |
|
| 1 | Remove approximately 20mm of outer jacket using the multi-purpose crimp tool. |
 |
|
| 2 | Arrange wires into the correct colour code sequence (most commonly TIA 568B). Slot cable into the plug pushing the wires through. Outer sheath of cable should sit inside the plug as far up as possible. |
 |
|
| 3 | Press the ‘Lock’ Button on Crimp tool to open it ready for use. Insert the loaded RJ45 plug into the socket and squeeze the handle to crimp the plug, the excess wire will also be trimmed at the same time. |
 |
|
| 4 | If you have followed the instructions you should now have a fully working RJ45 Connection. |

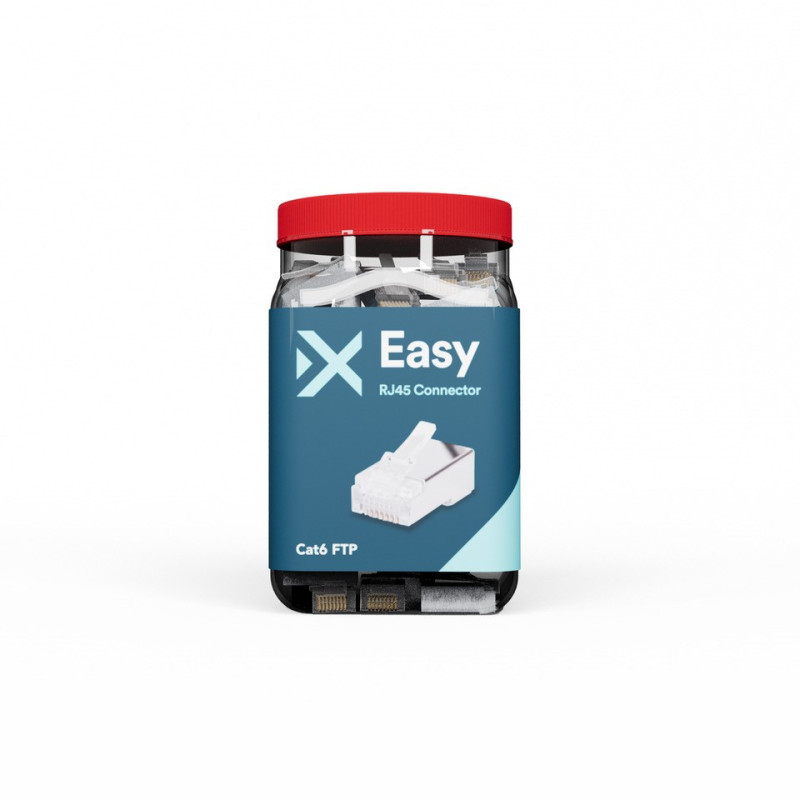

Cat 6 FTP RJ45 Easy Plugs
Connectix Cat 6 FTP Easy RJ45 Pass Through Connectors have been designed with speed and precision in mind.
59.41€
Tax included
