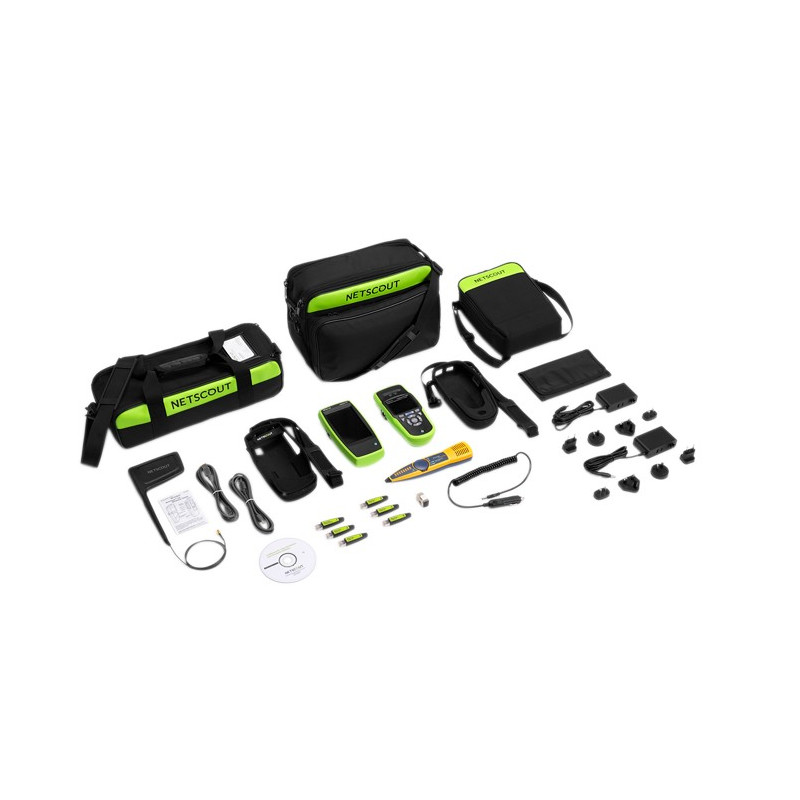

AirCheck G2 Wireless Tester KIT
  • AirCheck G2 Wireless Tester KIT
  • AirCheck G2 Wireless Tester KIT

There are many variables that lead to Wi-Fi complaints, ranging from network-based problems and configuration issues to environmental or client device misconfigurations. Collecting all the key pieces of information the very first time is key to every front-line IT responder to resolve any complaint. AirCheck G2 simplifies wireless troubleshooting by providing:

  • A rugged, purpose-built wireless tester supporting the latest Wi-Fi technologies (802.11a/b/g/n/ac) that’s easy to use and easy to carry.
  • A one-button AutoTest, which quickly provides a pass/fail indication of the wireless environment and identifies common problems — for any level of Wi-Fi expertise.
  • An instant view of test results including network availability, connectivity, utilization, rogue devices, and interference detection.
  • A centralized test results management platform, Link-Live, that facilitates greater job visibility, project control and fleet management for larger distributed environments.

The intuitive user interface and management platform provides actionable intelligence to not only remove the complexity of wireless troubleshooting but also helps speed up closure of the trouble ticket. The cost of not getting the job done right the first time, leads to ineffective usage of the escalation team efforts and end-user dissatisfaction due to slow problem-solving response time. AirCheck G2 provides front-line IT with complete and accurate wireless information to solve problems right the first time, instead of blindly escalating them.

Overview

AirCheck G2 integrates all Wi-Fi technologies plus interference detection, channel scanning, and connectivity tests. The one-button AutoTest and instant access to detailed information provides fast troubleshooting for the most common Wi-Fi pain points, including:

  • Coverage problems
  • Overloaded networks or channels
  • Channel interference
  • Connectivity problems
  • Failed access points
  • Rogue access points
  • Client problems
  • Unauthorized Clients


Ordering Guide

Model Number WhatsIncluded
AIRCHECK-G2 AIRCHECK-G2 WIRELESS TESTER
AIRCHECK-G2-KIT AIRCHECK-G2 PLUS EXTERNAL DIRECTIONAL ANTENNA, AUTO CHARGER, HOLSTER
ACKG2-LRAT2000 NETWORK TECH TROUBLESHOOTING KIT W/AIRCHECK-G2, LRAT-2000 and accessories
ACKG2-HOLSTER AIRCHECK-G2 HOLSTER
ACKG2-WBP-LION AIRCHECK-G2 LITHIUM-ION REPLACEMENT BATTERY
EXT-ANT-RPSMA EXTERNAL DIRECTIONAL ANTENNA, RP-SMA CONNECTOR
PWR-CHARGER AC CHARGER REPLACEMENT
SOFTCASE-G2 SOFTCASE
ACKG2-LRAT2000-1YS 1 Year Gold Tools Support for ACKG2-LRAT2000
ACKG2-LRAT2000-3YS 3 Year Gold Tools Support for ACKG2-LRAT2000
AIRCHECK-G2-KIT-1YS 1 Year Gold Tools Support for AIRCHECK-G2-KIT
AIRCHECK-G2-KIT-3YS 3 Year Gold Tools Support for AIRCHECK-G2-KIT
AIRCHECK-G2-1YS 1 Year Gold Tools Support for AIRCHECK-G2
AIRCHECK-G2-3YS 3 Year Gold Tools Support for AIRCHECK-G2
Altitude 4,000 m; Storage: 12,000 m
Battery life Typical operating life is 4.5 hours. Typical charge time is 7 hours
Display 1280 x 1024 high color, 32-bit (recommended)
Host interface 1x micro USB Type B port
Safety IEC 61010-1: Pollution degree 2
Weight 18 oz (0.51 kg)
Dimensions 3.8 in x 7.7 in x 1.6 in (9.7 cm x 19.6 cm x 4.1 cm)
EMC IEC 61326-1: Basic Electromagnetic Environment; CISPR 11: Group 1, Class A
Operating Temperature 32ºF to 113ºF (0ºC to +45ºC) The battery will not charge if the internal temperature of the tester is above 122ºF (50ºC).
Storage Temperature -4ºF to 140ºF (-20ºC to +60ºC)
Battery Rechargeable lithium-ion battery pack (3.6 V, 6 Ah, 21 Wh)
Shock and Vibration 1 m drop test, Random, 3.8 g, 5 Hz-500 Hz
External AC adapter/charger AC input 85-264 Vac 47-63 Hz input power DC output 15 Vdc at 2 amps
Keypad 1-key elastomeric (power only)
Adjunct Interface 2x USB 2.0 Type A port
Wireless antenna 3x Internal
External antenna port Input only. Reverse-polarity SMA connector
Operating relative humidity (% RH without condensation) 90% (50ºF to 95ºF; 10ºC to 35ºC) 75% (95ºF to 113ºF; 35ºC to 45ºC)
Wireless Specifications Specification compliance IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Wi-Fi Connectivity 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Internal Wi-Fi antennas Three internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas.
External directional antenna Antenna, frequency range 2.4 - 2.5 and 4.9 - 5.9 GHz. Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band.
External antenna connector Reverse SMA
Supported operating systems Windows 7, Windows 8.1, Windows 10
Processor 400 MHz Pentium processor or equivalent (minimum); 1 GHz Pentium processor or equivalent (recommended) RAM 96 MB (minimum) RAM 256 MB (minimum); 512 MB (recommended)
Hard disk Up to 500 MB of available space may be required
Hardware USB Port

Specific References

EAN13
75408213638

AirCheck G2 Wireless Tester KIT

AirCheck AIRCHECK-G2-KIT
In Stock
£3,153.51
Tax excluded
Reference: 00A-501-001-10
