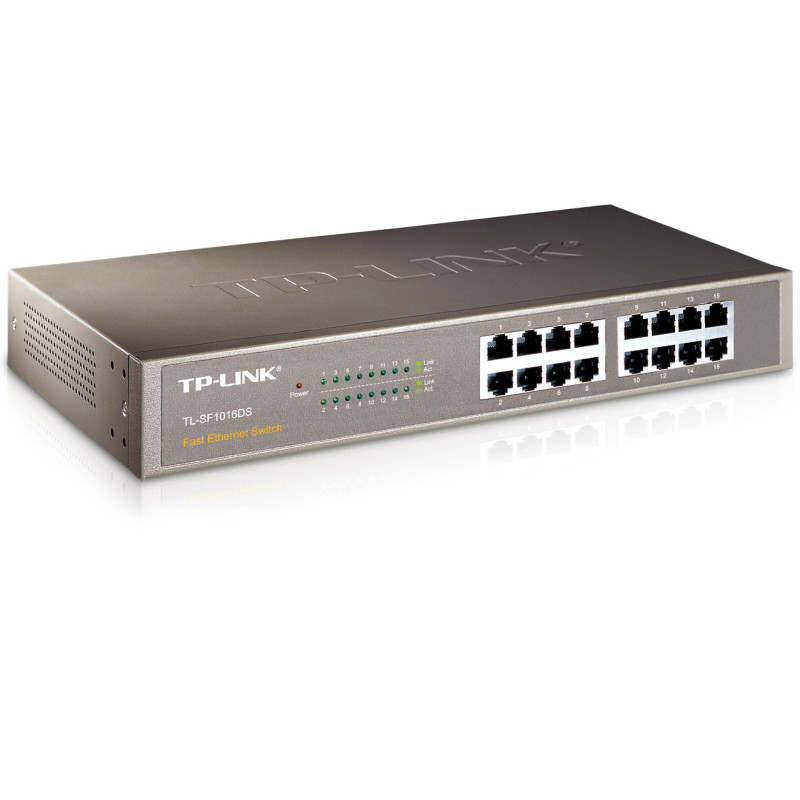

TP-LINK TL-SF1016DS 16 Port 10/100 Switch
  • TP-LINK TL-SF1016DS 16 Port 10/100 Switch
  • TP-LINK TL-SF1016DS 16 Port 10/100 Switch
  • TP-LINK TL-SF1016DS 16 Port 10/100 Switch
What This Product Does

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.



High Performance

The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.



TP-LINK Green Technology

This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.



Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10 & 100) and intelligently adjusts for compatibility and optimal performance.
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 16
Certification FCC, CE
Connectivity technology Wired
Dimensions (WxDxH) 294 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity 16
Flow control support Yes
Full duplex Yes
LED indicators Link,Power
MAC address filtering Yes
MAC address table 8000 entries
Management Unmanaged
Maximum data transfer rate 0.1 Gbit/s
Mounting Desktop & Rackmount
Networking standards IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating relative humidity range 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Operating temperature range (T-T) 0 - 40 °C
PoE No
Ports quantity 16
Power requirements 100 - 240VAC, 50/60Hz
Rack mounting Yes
RJ45 Ports Qty 16
Source data-sheet Icecat.biz
Stackable No
Storage relative humidity (H-H) 5 - 90 %
Storage relative humidity range 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Storage temperature range (T-T) -40 - 70 °C
Store-and-forward Yes
Supported data transfer rates 10/100 Mbps
Supported network protocols CSMA/CD, TCP/IP
Switch Speed 10/100
Switch type Unmanaged
Switching capacity 3.2 Gbit/s
Wi-Fi No
Wireless LAN connection No
