Reasons to Buy
Technical Headlines
POWER AND THROUGHPUT

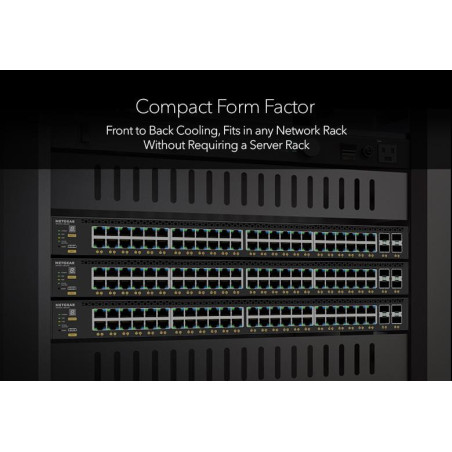

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

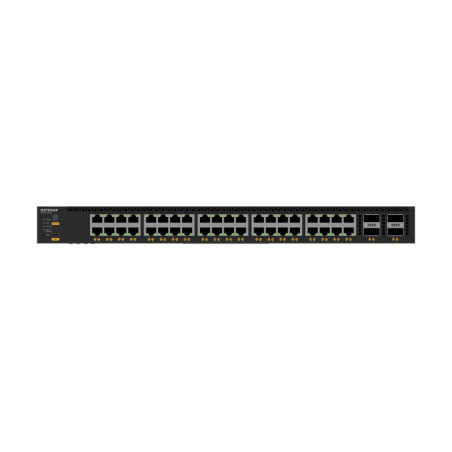

- 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
- 750W internal power supply providing 196W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
Technical Headlines
- Managed L3 Web-based management SNMP V1, V2, V3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 40
- 10G support
- MAC address table: 16000 entries Switching capacity: 1600 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
| 10G support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Built-in processor | Yes |
| Cables included | AC, USB Type-C |
| Depth | 400 mm |
| Flash memory | 512 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Height | 43.2 mm |
| Internal memory | 4096 MB |
| Latency (10 Gbps) | 2.71 µs |
| LED indicators | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management protocols | SNMP V1, V2, V3 |
| Memory type | DDR4-SDRAM |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Non-operating altitude | 0 - 3000 m |
| Number of VLANs | 4093 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 256 MB |
| Power consumption (typical) | 200.4 W |
| Power over Ethernet (PoE) | Yes |
| Power source | AC |
| Power supply | 750 W |
| Processor model | ARM Cortex-A57 |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mounting | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Store-and-forward | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 1600 Gbit/s |
| Throughput | 1190.4 Mpps |
| Web-based management | Yes |
| Weight | 7.76 kg |
| Width | 440 mm |
| Sustainability compliance | Yes |
| QSFP28 ports quantity | 4 |
| IGMP proxy | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| 10G Ethernet (copper) ports quantity | 40 |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| 6to4 tunnel | Yes |
Specific References
- EAN13
- 0606449165197

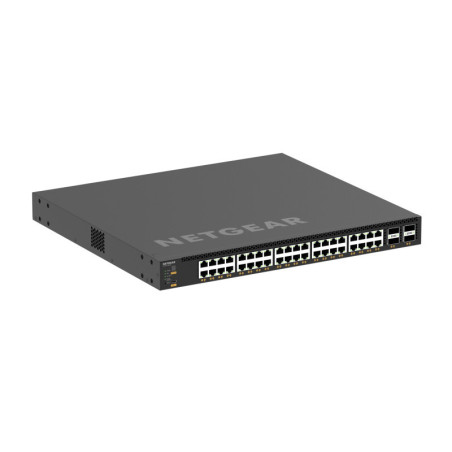

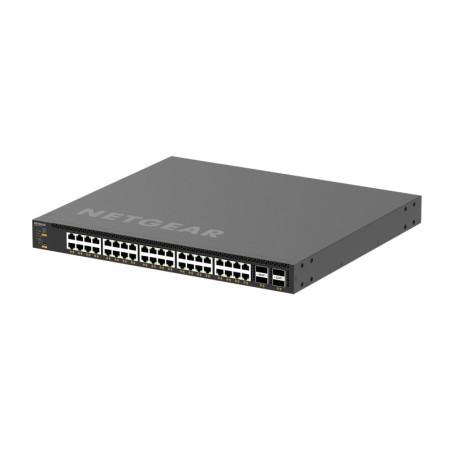

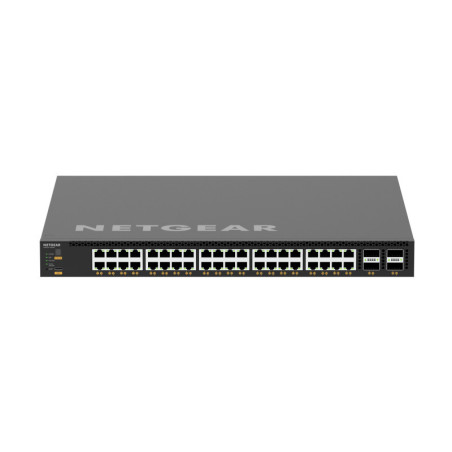

NETGEAR M4350-40X4C Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
NETGEAR M4350-40X4C, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U
€11,623.26
€11,623.26 Ex. VAT
