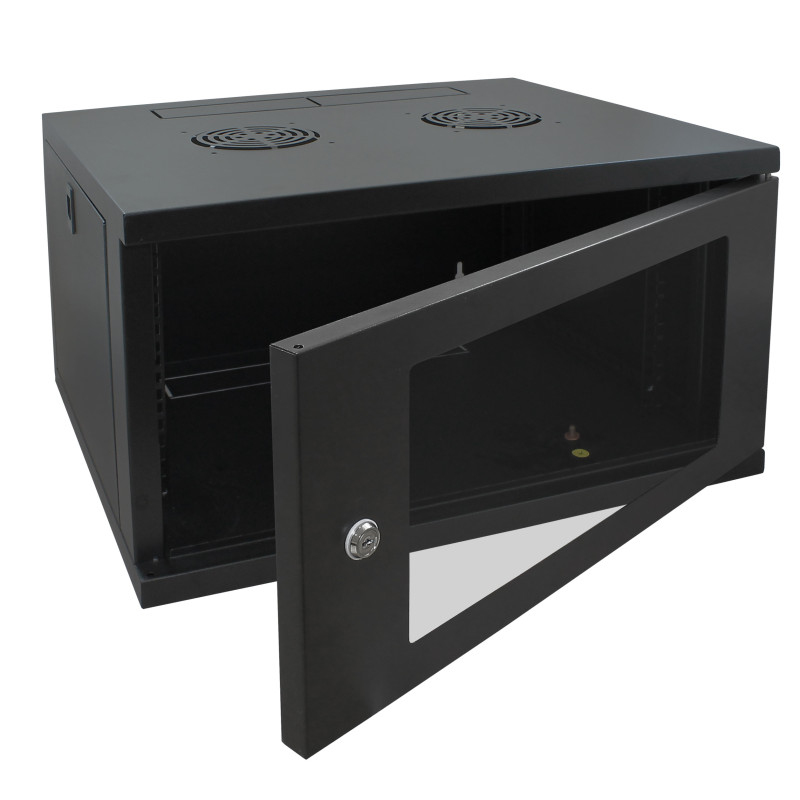

The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.
The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front 19” mounting profiles.
A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.
Features:
- Supplied fully assembled
- Ventilated top
- Adjustable mounting posts
- Lockable and removable sides
- Cable access top and bottom
- Lockable glass front door
Dimensions By U Height
| U Height | Size (HxWxD) | Net Weight |
| 6U | 348x550x450 mm | 14 Kg |
| 9U | 481x550x450 mm | 17.5 kg |
| 12U | 615x550x450 mm | 21 Kg |
| 15U | 748x550x450 mm | 24.5 Kg |
| 18U | 881x550x450 mm | 29 Kg |
| 21U | 1015x550x450 mm | 32.5 Kg |
Maximum Internal Depth is 340mm
| Cable Entry | Top & Bottom |
| Colours | Black |
| Construction | Welded |
| Depth | 450mm |
| Front Door Type | Glass Lockable/Removable |
| Internal Working Depth | 340mm |
| Mounting Profiles | 19" Adjustable Front & Rear |
| Side Panels | Removable |
| Width | 550mm |
Specific References
- EAN13
- 5056045700592
Bilgin U -
2020-01-11 16:41:25
Very good quality. Thank you.
usman k -
2019-11-22 00:10:15
Perfect fit and design for the job this was needed for, also three seperate keys to lock side panels and front door were given.
RackyRax 450mm Deep Wall Mounted Data Cabinets
Black Wall Cabinet available in wide range of heights.
120.23€
