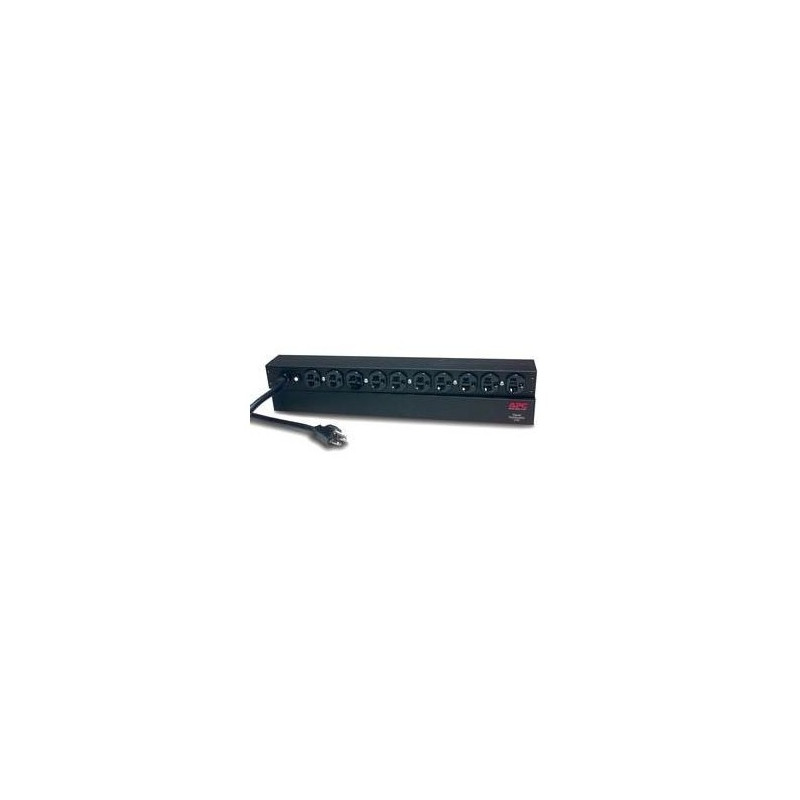

APC Basic Rack PDU AP9563

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Cable length3.66 m
CertificationcUL Recognized,CSA,UL 1363,UL Recognized, RoHS
Colour of productBlack
Dimensions (WxDxH)447 x 57 x 44 mm
Input connection typeNEMA 5-20P
Input frequency50/60 Hz
Load capacity2400 VA
Maximum input current per phase20 A
Maximum total current draw per phase20 A
Nominal input voltage120 V
Operating temperature range (T-T)-5 - 45 °C
Output connections10x NEMA 5-20R
Storage temperature range (T-T)-25 - 65 °C
Weight2.5 kg

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Rack PDU. Basic. Zero u. 32a. 230v. (20)c13 & (4)c19
    APC Rack PDU. Basic. Zero u. 32a. 230v. (20)c13 & (4)c19
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC Basic Rack PDU AP9563

Basic Rack PDU , Input: 120V , Input Connections: NEMA 5-20P , Cord Length: 12 feet ( 3.66 meters ) , Output: 120V , Output Connections: NEMA 5-20R

AP9563

Out of Stock

€399.42
€324.73 Ex VAT.
