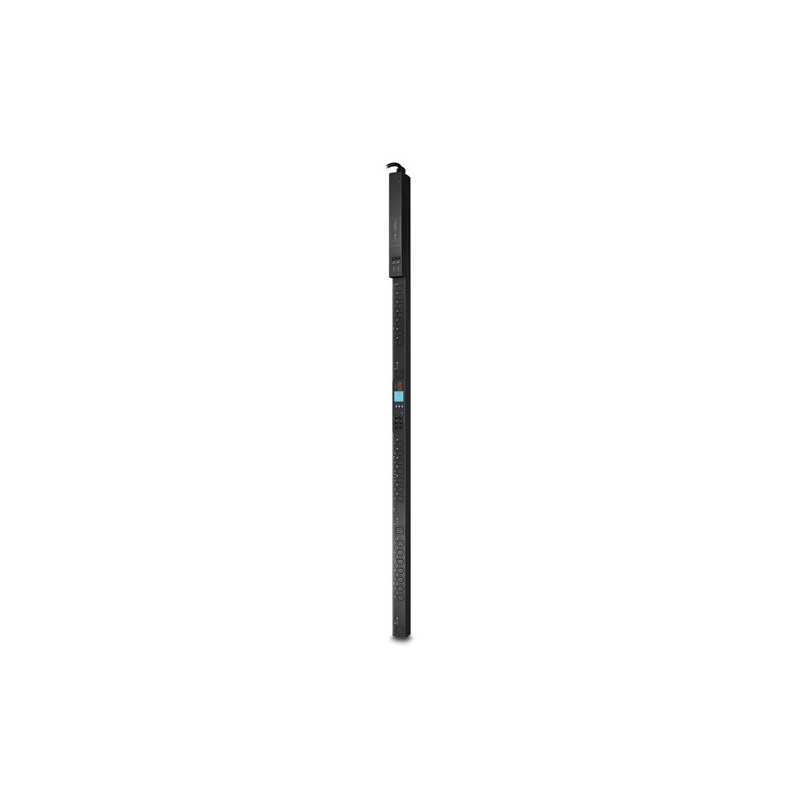

APC Switched Rack PDU AP8653
  • APC Switched Rack PDU AP8653
  • APC Switched Rack PDU AP8653
  • APC Switched Rack PDU AP8653
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.



Includes: CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 24 AC outlet(s)
Cable length 3 m
Certification EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Colour of product Black
Dimensions (WxDxH) 56.00 x 51.00 x 1829.00 mm
Input frequency 50/60 Hz
Maximum current 32 A
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Nominal input voltage 230 V
Nominal output voltage 230 V
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 95 %
Operating relative humidity range 5 - 95 %
Operating temperature (T-T) -5 - 45 °C
Operating temperature range (T-T) -5 - 45 °C
Package dimensions (WxDxH) 162.00 x 118.00 x 2038.00 mm
Package weight 10500 g
PDU types Switched
Power protection features Overload
Rack mounting 0U
RoHS compliance Yes
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 95 %
Storage relative humidity range 5 - 95 %
Storage temperature (T-T) -25 - 65 °C
Storage temperature range (T-T) -25 - 65 °C
Weight 8230 g
