AC outlet types | C13 coupler, C19 coupler |
AC outlets quantity | 42 AC outlet(s) |
Cable length | 1.83 m |
Certification | EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs |
Colour of product | Black |
Dimensions (WxDxH) | 56 x 51 x 1829 mm |
Input frequency | 50/60 Hz |
LED indicators | Yes |
Maximum current | 32 A |
Maximum input current per phase | 32 A |
Nominal input voltage | 400 V |
Nominal output voltage | 230 V |
Non-operating altitude | 0 - 15000 m |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 5 - 95 % |
Operating relative humidity range | 5 - 95 % |
Operating temperature (T-T) | 0 - 55 °C |
Operating temperature range (T-T) | 0 - 55 °C |
Output connections | 30 x IEC 320 C13 12 x IEC 320 C19 |
Package dimensions (WxDxH) | 170 x 112 x 2050 mm |
Package weight | 11550 g |
PDU types | Metered |
Power protection features | Overload |
Rack mounting | 0U |
RoHS compliance | Yes |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 5 - 95 % |
Storage relative humidity range | 5 - 95 % |
Storage temperature (T-T) | -25 - 65 °C |
Storage temperature range (T-T) | -25 - 65 °C |
Weight | 8720 g |

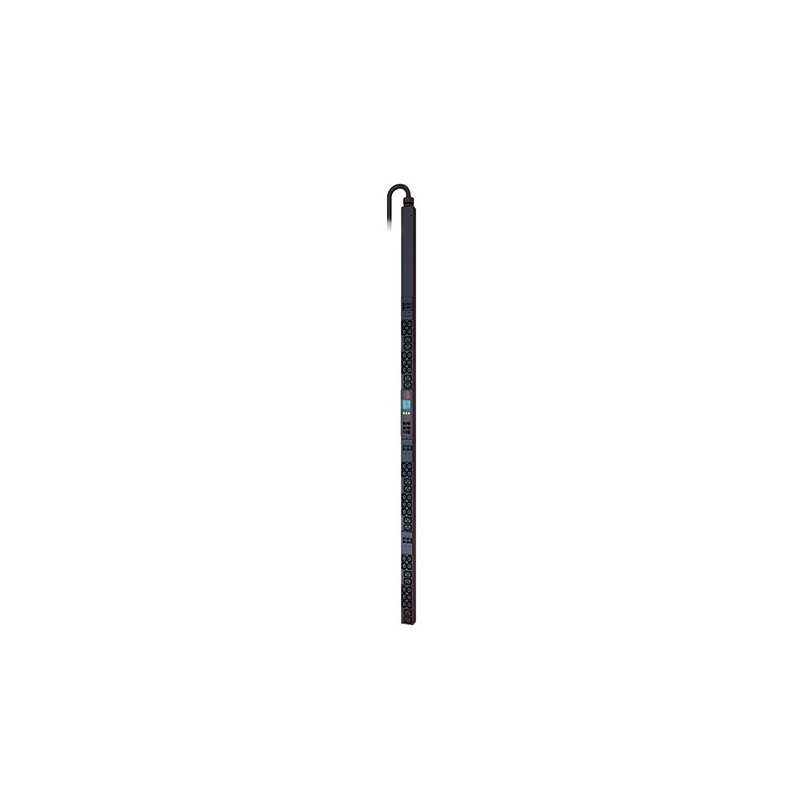

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19
AP8886
Out of Stock
