| Connectivity technology | Wireless |
| Depth | 78.5 mm |
| Height | 20.9 mm |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Internal | Yes |
| Maximum data transfer rate | 1800 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Package height | 41.5 mm |
| Package weight | 220 g |
| Package width | 201.5 mm |
| Plug and Play | Yes |
| Quick installation guide | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Wi-Fi | Yes |

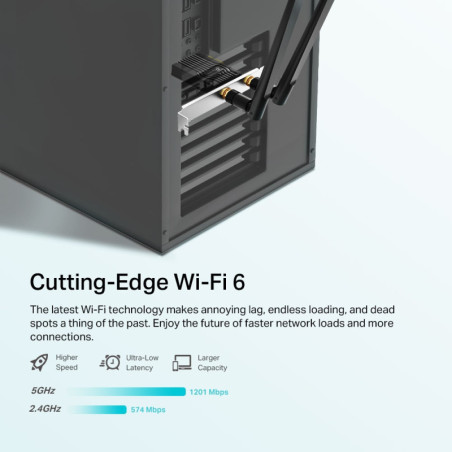

| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Width | 120.8 mm |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 27 dBm |
| Sustainability compliance | Yes |

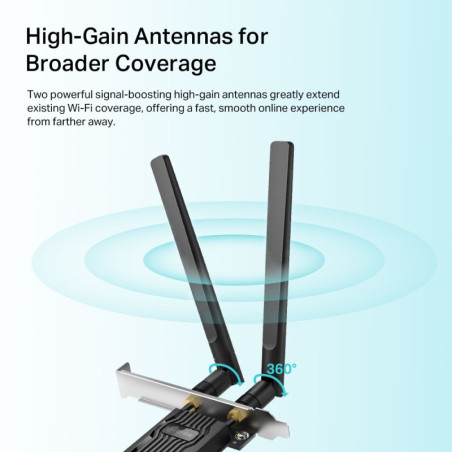

| Antenna design | External |
| Bluetooth header cable | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
