Reasons to Buy

Gigabit Ethernet ports
24VDC passive PoE supported
Auto-adjusted power depends on requirements
Convenient wall-mounting design
Plug-and-Play, no configuration required

Technical Headlines

10,100,1000 Mbit/s Cat3, Cat4, Cat5, Cat5e, Cat6 100 m
Power over Ethernet (PoE)
Auto MDI/MDI-X
White

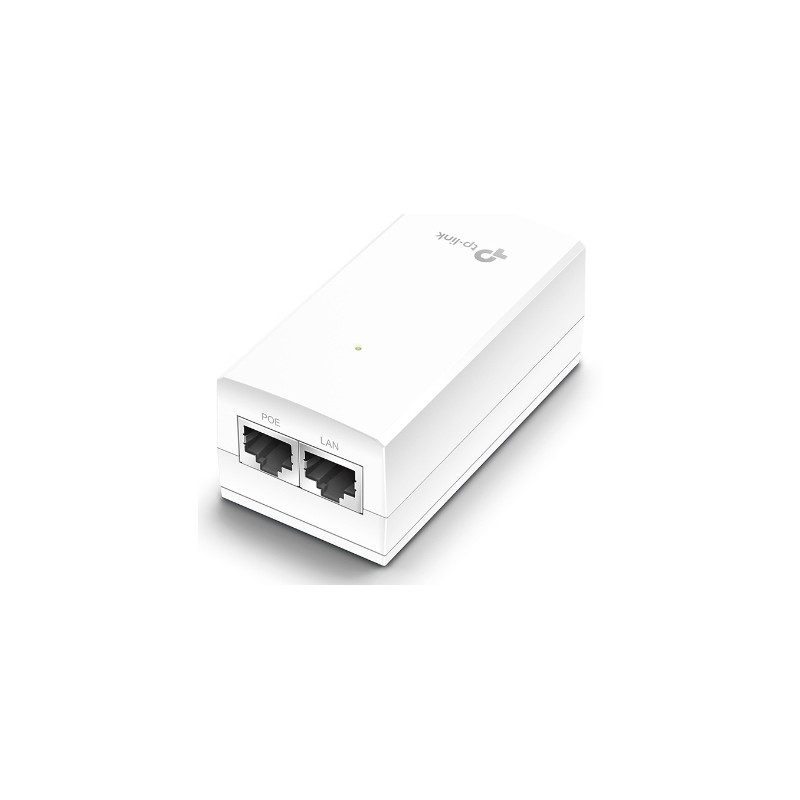

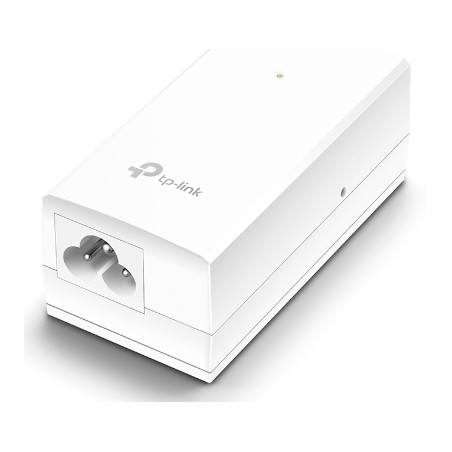

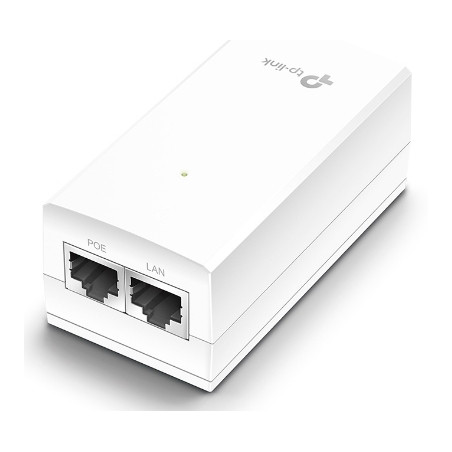

Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

Auto MDI/MDI-X	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Cabling technology	10/100/1000
Certification	FCC, CE, RoHS
Depth	43.9 mm
Dimensions (WxDxH)	43.9 x 85.8 x 35 mm
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	10,100,1000 Mbit/s
Height	35 mm
LED indicators	Power
Maximum operating distance	100 m
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C 32 - 104 °F
Output power	12 W
Package height	60 mm
Package weight	290 g
Package width	60 mm
Plug and Play	Yes
Power over Ethernet (PoE)	Yes
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Width	85.8 mm
Harmonized System (HS) code	85044095
Compliance certificates	RoHS
