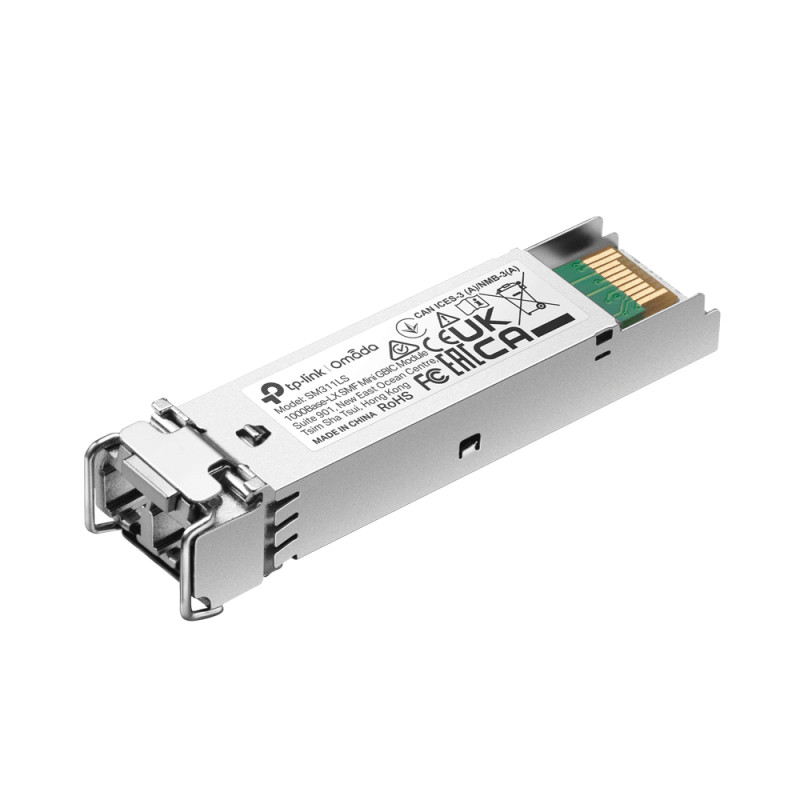

P-Link Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
Reasons to Buy
  • Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Hot-Pluggable with maximum flexibility
  • Commercial Product Operating Temperature Range: 0-70°C


Technical Headlines
  • mini-GBIC Fiber optic 1250 Mbit/s
  • Wavelength: 1310 nm
  • Hot-swap Hot-Plug support
  • Input voltage: 3.3 V


The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Depth 14.6 mm
Fiber ethernet cabling technology 1000BASE
Fiber optic connector LC
Height 12.9 mm
Hot-Plug support Yes
Input voltage 3.3 V
Interface type mini-GBIC
Manual Yes
Maximum data transfer rate 1250 Mbit/s
Maximum transfer distance 20000 m
Networking standards IEEE 802.3z
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 70 °C
Package height 38 mm
Package weight 110 g
Package width 38 mm
Quantity per pack 1 pc(s)
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 85 °C
Wavelength 1310 nm
Width 55.4 mm
Fiber cable diameters supported (core/cladding) 9/125 µm
SFP transceiver standard LX
Compliance certificates CE, Federal Communications Commission (FCC)

Specific References

EAN13
6935364030216

SM311LS.pdf

TP-Link Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance Data Sheet

TP-Link Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance

TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance, Fiber optic, 1250 Mbit/s, mini-GBIC, LC, 9/125 µm, LX
In Stock
€36.11
€29.36 Ex. VAT
Reference: SM311LS
