Cat6 CCS 4000 Series - Vertical Outlets
  • Cat6 CCS 4000 Series - Vertical Outlets
  • Cat6 CCS 4000 Series - Vertical Outlets
  • Cat6 CCS 4000 Series - Vertical Outlets
  • Cat6 CCS 4000 Series - Vertical Outlets

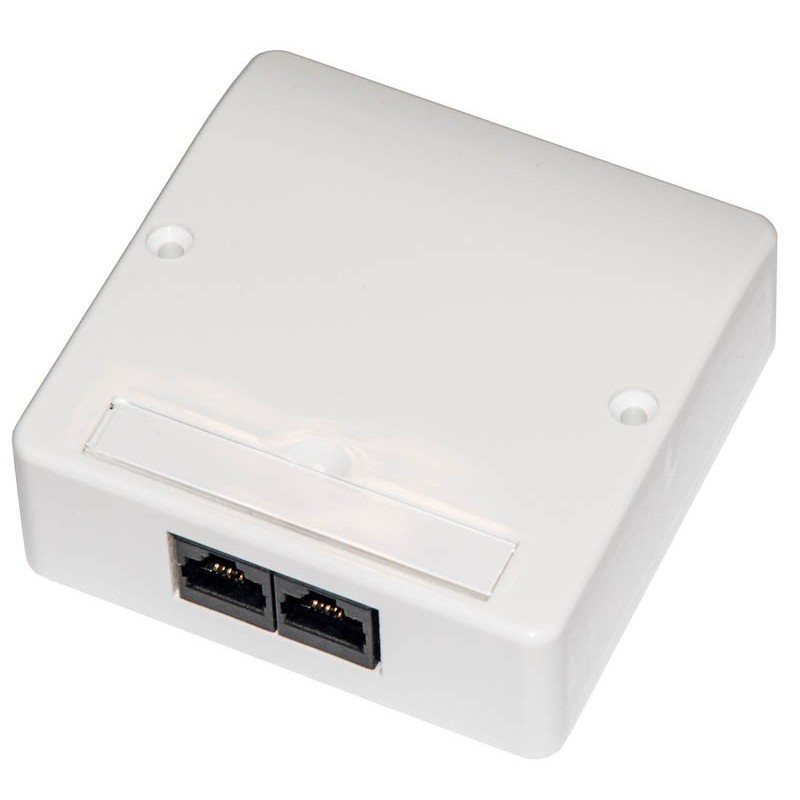

The Connectix 4000 Series offers Category 6 performance in a high-density package.

The 4000 Series is extremely quick and easy to install; just attach the base plate, snap in the PCB, punch down the cables and install the cover. Gone are the problems of installing modules into a faceplate and pushing excess wires into a back box.

The 4000 Series outlets have been designed for direct wall mounting with top entry mini trunking. In addition, they fit on a standard back box to provide maximum mounting flexibility.

The position of the sockets on the vertical outlet allows for a compact installation without protruding leads.

Features:

  • High density, single gang unit
  • Category 6 performance
  • No protruding leads
  • Designed for direct wall mounting
  • Custom logo service available
  • Available in a 2 or 4 port version



Specifications:

  • Width - 87mm
  • Depth - 27mm
  • Height - 87mm
  • Material - ABS thermoplastic resin, with grade UL94 VO at 1.5mm flame retardancy
  • Finish - High gloss
  • IDC Blocks - Industry standard IDC blocks
  • PCB - 1.6mm double sided PTH boards
  • Conforms to - TIA/EIA-568-C Category 6 Specification
Depth27mm
Height87mm
ShieldedNo
SpecificationCat6
TerminationKrone Style IDC PunchDown
Width87mm

Michael C - 11/03/2024

Discreet and worked well with my use case.

Richard Stuart G - 24/11/2023

Really neat and tidy solution, had to ask a connection question but Cable Monkey came back very quickly with a reply

Lindsay M - 17/03/2022

More expensive but quick to install and neat. A well thought out product.

R C - 13/02/2022

Excellent way of keeping cables today in a small space.

Micael P - 10/03/2021

Clean, effective. Comes with spare screws as well.Knocking down to 4 stars as the first one I received was faulty.

Robert M - 19/02/2021

Good clean unit that looks smart and does not need a back box. Excellent!

dave w - 31/12/2020

Perfect for fitting under a shallow false floor as outlets are side fed
