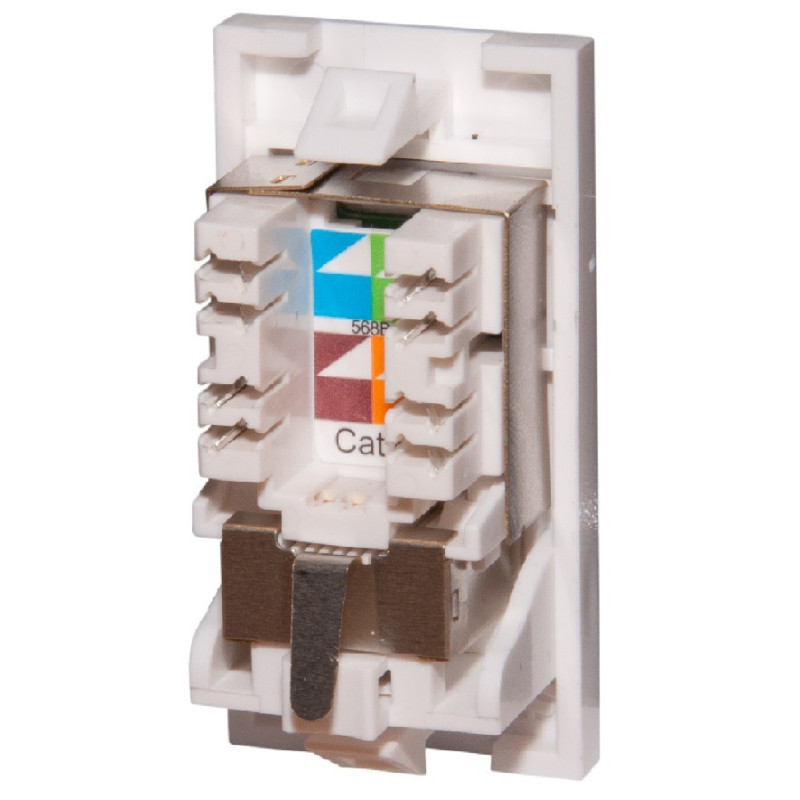

• Cat6 FTP Shielded RJ45 Module (Euromod Size)
  • Cat6 FTP Shielded RJ45 Module (Euromod Size)
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

The Connectix Category 6 FTP Compact Module provides the performance needed for present and next generation data communications networks and applications, including Gigabit Ethernet, with the added benefit of shielding to minimise the risk of EMI. The use of next
generation components and specially designed boards allow a bandwidth of 250MHz to be achieved in a shielded package.

Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

The compact design provides one of the shallowest wall outlets on the market; making them the ideal solution wherever back-box depth is a problem. The modules are fully compliant with the ANSI/TIA Category 6 standards. When used in conjunction with Connectix Category 6 FTP Patch Panels and FTP Cable the user will get a link performance exceeding Category 6 requirements.

Details:

Features:

  • Shielded design for improved EMI performance
  • Suitable for Gigabit Ethernet applications and beyond
  • Ultra-slimline design
  • Colour coded for quick and accurate termination
  • Interchangeable with all other Euro modules and blanks
  • Individually QA tested
  • Easy to use shield connection



Specifications:

  • Width - 25mm
  • Depth - 22mm
  • Height - 50mm
  • Recommended Back-box Depth - 32mm
  • Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 VO at 1.5mm flame retardancy
  • Finish - High gloss
  • IDC Labels - Colour coded labels to T568B
  • Cable Guide - Integrated earth connection / cable tie position
  • Sockets - High performance shielded RJ45
  • IDC Blocks - Industry standard IDC blocks
  • Conforms to - ANSI/TIA-568-C.2 Category 6 Specification
Faceplate IncludedNo
Module Size25mm x 50mm Euromod
ShieldedYes
SpecificationCat6
TerminationIDC Punchdown
ManufacturerConnectix Cabling Systems
