The Connectix 2020 Series Patch Panel is an alternative to the Category 6 High Density Panel. It offers the same Category 6 performance as the standard panel but has been designed to present the cable termination IDCs horizontally on a tray at the rear , making termination and
cable management easier.

Category 6 High Density 24 way panels achieve optimum transmission performances by incorporating the highest quality components and innovative on-board compensation techniques.

This panels offer extended PowerSum characteristics and exceeds the ANSI/TIA-568-C specifications. When combined with Connectix Category 6 Modules and UTP Cable the link will perform well in excess of the Category 6 specification.

LC, SC, ST and FC fibre modules are also available, complete with a Starlight compatible gland hole and integrated management tray. Blank modules can be included for future expansion.

Details:

Features:

  • Easy to install
  • Simple cable management
  • Suitable for Gigabit Ethernet applications
  • Adjustable recessed mounting version available
  • Mix and match copper and fibre in one panel



Specifications:

  • Width - 483mm (19”)
  • Depth - 95mm
  • Height - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01
  • Finish - Matt black polyester paint
  • Socket Labels - Write-on silk screen on panel front
  • Cable Management - Improved cabling facility with easy to use cable tie positions for left and right cable entry
  • IDC Labelling - Colour coded to T568B
  • IDC Blocks - Industry standard 4 way IDCs
  • Conforms to - ANSI/TIA-568-C Category 6 Specification
Ports quantity24 Port
ShieldedNo
SpecificationCat6
TerminationRight Angled IDC Punchdown
U Height1u
EAN5056045700363
ManufacturerConnectix Cabling Systems

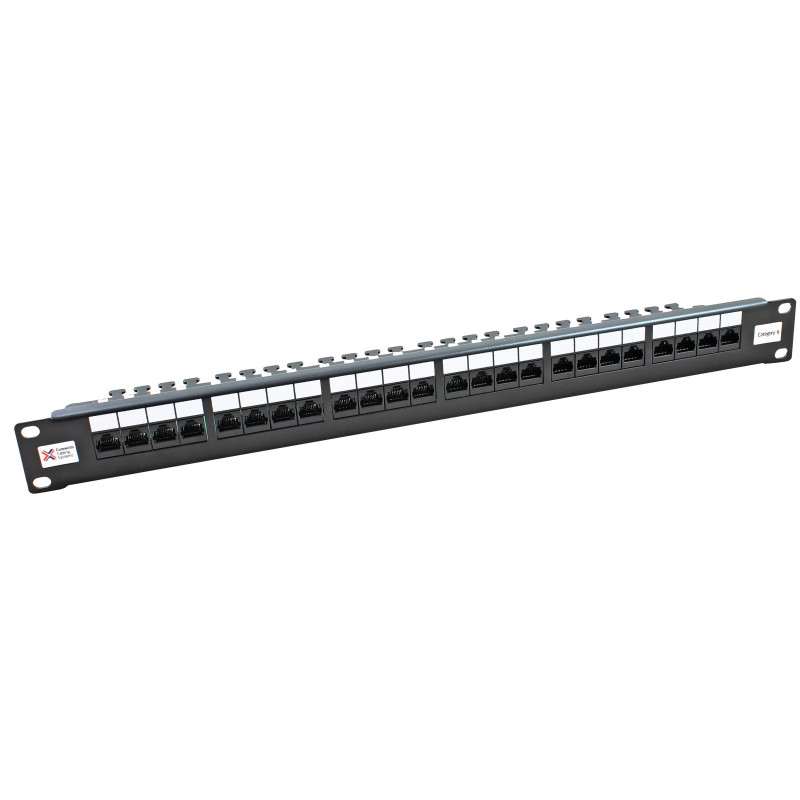

24 Port Cat6 UTP CCS 20/20 Right Angled Patch Panel

€71.34 Inc VAT.

€58.00

In Stock

Right Anglled 24 Cat6 ports in 1u of space More details

009-001-001-40
