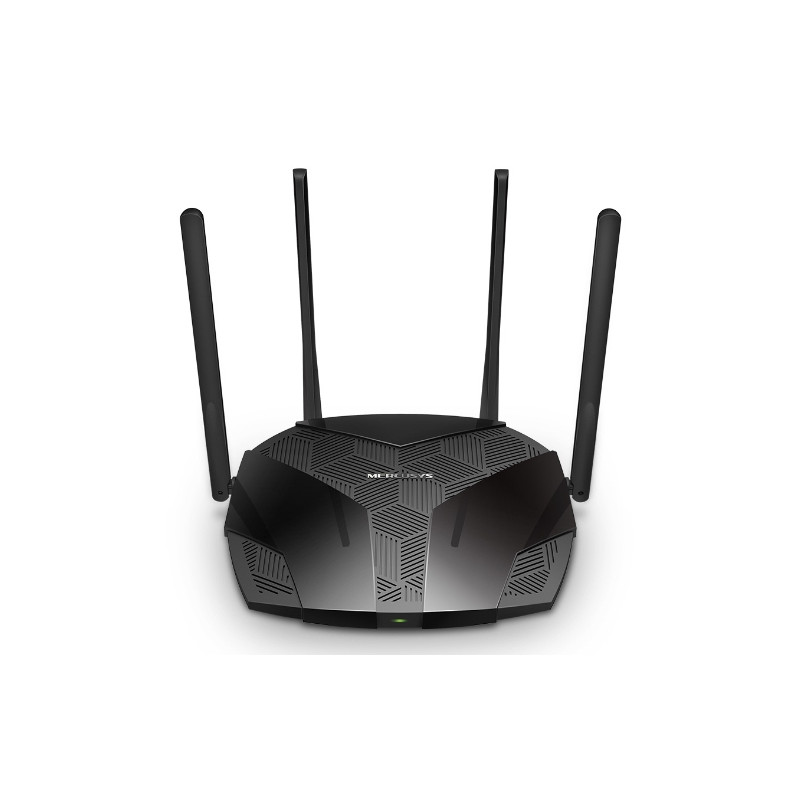

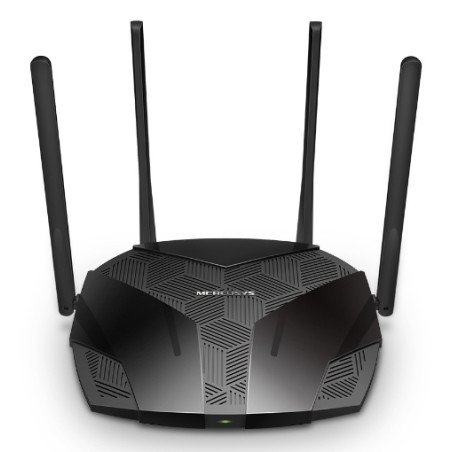

ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
  • ercusys AX3000 Dual-Band Wi-Fi 6 Router
Reasons to Buy
  • OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time
  • MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
  • WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  • OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
  • GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  • ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
  • LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
  • SMART CONNECT – Intelligently chooses the best available band for each device


Technical Headlines
  • Tabletop router Black
  • Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 3000 Mbit/s
  • Gigabit Ethernet
  • Ethernet WAN

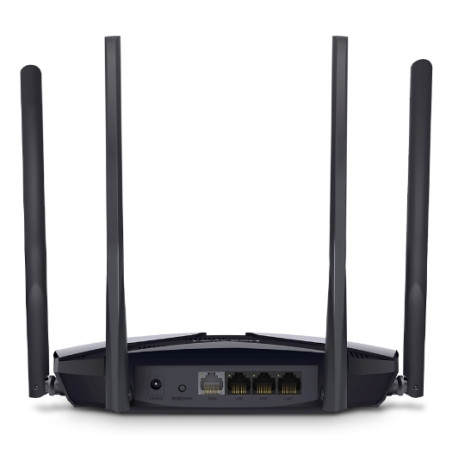

  • Ethernet LAN (RJ-45) ports: 3


Faster Speeds. Broader Access. Higher Capacity.
A New Era of Home WiFi
AX3000 Dual-Band Wi-Fi 6 Router

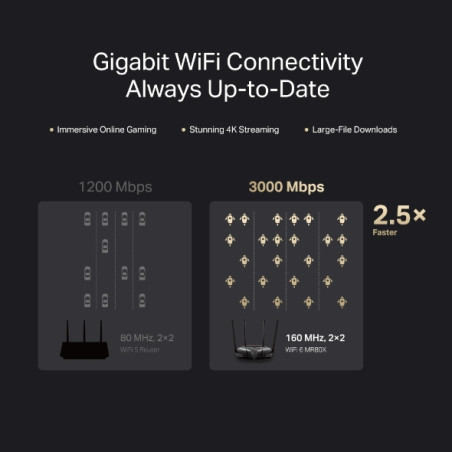

Gigabit WiFi Connectivity, Always Up-to-Date
Doubling the bandwidth with 160 MHz channels,1 MR80X unlocks the limits of the previous channel width and provides next-level speeds for your devices. With WiFi 6 speeds up to 3 Gbps,2 finish large-file downloads in minutes and experience stunning 4K streaming without lag.

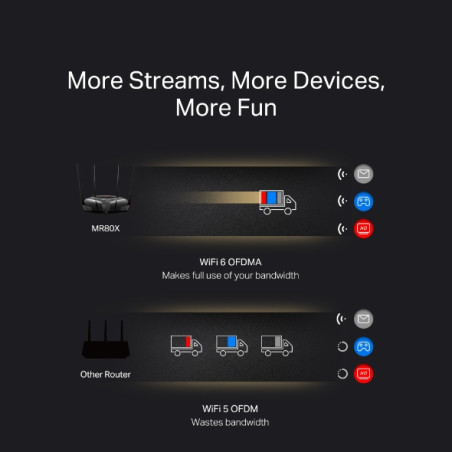

Connect 4× More Devices, All Simultaneously
Streaming or gaming on multiple devices brings more fun without dragging down performance. MR80X supports OFDMA and MU-MIMO1 to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4× greater network capacity and efficiency in traffic-dense environments.

Reduce the Interference from Your Neighbors’ WiFi
Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbors. MR80X supports BSS Coloring to mark the data frames from different APs. This helps minimize the signal interference from your neighbors to improve transmission efficiency.

Eco-Friendly Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices’ battery life.

More Targeted Signals that Penetrate Walls

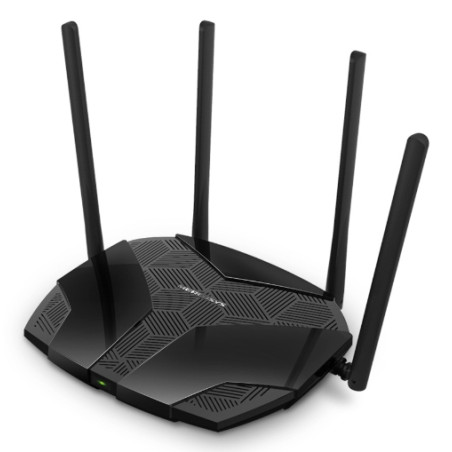

Four external high-gain antennas armed with integrated signal amplifiers provide strong WiFi signals that reach farther. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.

The Latest WPA3 Protects Your Personal Network
The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks4.

Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password

Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session’s secret keys

Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders

Smart Connect
Assigns Devices to the Best Band Automatically
Smart Connect allows each of MR80X's wireless bands to use the same wireless settings. MR80X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.

Powerful Qualcomm Chipset Minimizes Buffering and Lag
Powered by a highly integrated Qualcomm WiFi 6 chipset that combines a 64-bit dual-core CPU and an advanced 12-thread programmable network processor, MR80X enables stable connections for up to 256 devices.5 Your network can now handle massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time.
3G No
AC adapter included Yes
Antenna gain level (max) 5 dBi
Antennas quantity 4
Cables included LAN (RJ-45)
Cabling technology 10/100/1000Base-T(X)
DC-in jack Yes
Depth 171.6 mm
DHCP client Yes
DHCP server Yes
DMZ support Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 3
Ethernet LAN data rates 10,100,1000 Mbit/s
External power adapter Yes
Firewall Yes
Firewall security SPI Firewall, IP and MAC Address Binding
Height 41.7 mm
LED indicators LAN, WAN
NAT functionality Port Forwarding, Port Triggering, UPnP, DMZ
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Quick installation guide Yes
Reset button Yes
Security algorithms WEP, WPA, WPA2, WPA3
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Universal Plug and Play (UPnP) Yes
USB port No
VPN support OpenVPN, PPTP supported
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width 208.8 mm
Ethernet WAN Yes
WLAN data transfer rate (max) 3000 Mbit/s
DSL WAN No
SIM card slot No
WLAN data transfer rate (first band) 2402 Mbit/s
WLAN data transfer rate (second band) 574 Mbit/s
Number of guest networks (5 GHz) 1
Number of guest networks (2.4 GHz) 1
Wireless radio Yes
Port triggering Yes
5G No
VPN server OpenVPN, PPTP
Harmonized System (HS) code 85176990
Antenna design External
Wi-Fi Multimedia (WMM)/(WME) Yes

Specific References

EAN13
6957939000646

MR80X.pdf

Mercusys AX3000 Dual-Band Wi-Fi 6 Router Data Sheet

Mercusys AX3000 Dual-Band Wi-Fi 6 Router

Mercusys AX3000 Dual-Band Wi-Fi 6 Router, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router
In Stock
€61.86
€50.29 Ex. VAT
Reference: MR80X
