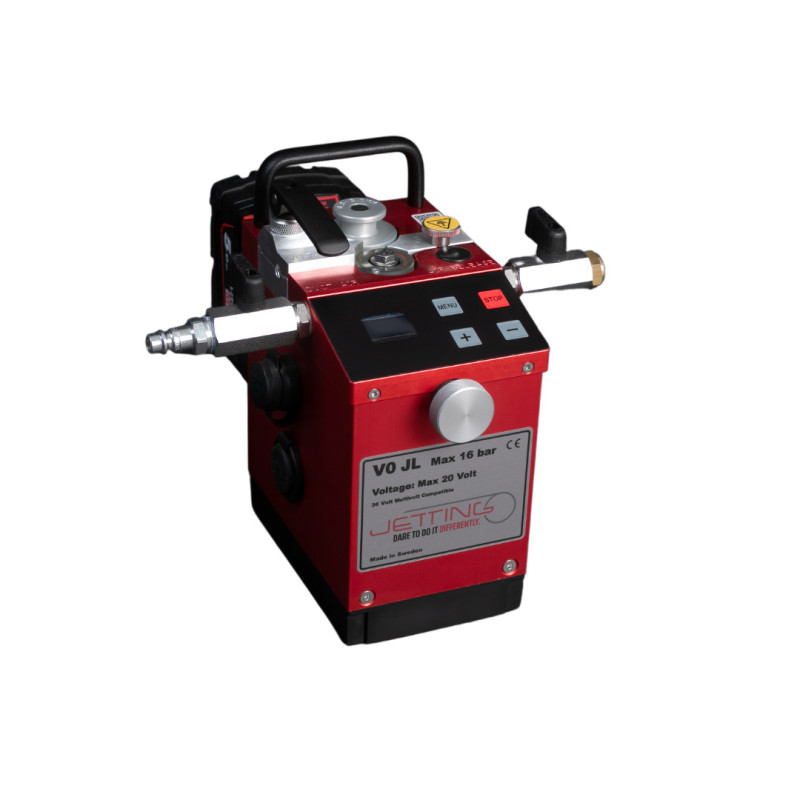

The V0 Fibre Blowing Machine is an extremely compact electrically operated fibre blowing machine optimised for FTTx installation of blown fibre (EPFU) and micro/nano cables, from 0.8 to 6mm into duct from 3 to 16mm. A full digital control system with soft- start, electronic fibre security, memory functions, combined with high speed possibility makes the machine very easy and effective to use. Can be operated directly from its case.

Features & Benefits

Electrically operated, battery connected, optional power supply
Allows installation in a larger duct with a smaller compressor
Electronic stopping/slipping protection within 250ms
Gentle operation, reduced cable pull with the aid of continuously variable pushing force
Forward and reverse function
Display for current speed, distance, pushing force pressure and duct air temp
Stepless pushing force on cable up to: 60N
Adjustable clamping force
Works with electronic documentation system (JetLogger)
110/240V Power supply (No need to charge or change batteries)
Table bracket - For safe installation on working table
Metal drive wheel for <2.5mm cable
Softstart: Enables an even smoother start protecting the fiber
Memory: The last inserted data like pushing force will stay in the memory even if the device will be switched off or the battery need to be exchanged
Service info: Memory of total milage/distance since the machine was taken into operation
Duct air temp: Display showing the air temperature injected into the duct
