The V0 HD fibre Blowing Machine is an extremely compact electrically operated fibre blowing machine optimized for FTTx installation of blown fibre (EPFU) and micro/nano cables, from 0.8 to 6.5mm into duct from 3 to 16mm. A full digital control system with soft-start, electronic fibre security, memory functions, combined with a 200N powerful motor makes the machine flexible and effective to use. Can be operated directly from its case.
Features & Benefits
Available with and without JetLogger Documentation System.
Features & Benefits
- Electrically operated, battery connected, optional power supply
- Allows installation in a larger duct with a smaller compressor
- Electronic stopping/slipping protection within 250ms
- Gentle operation, reduced cable pull with the aid of continuously variable pushing force
- Forward and reverse function
- Display for current speed, distance, pushing force pressure and duct air temp
- Stepless pushing force on cable up to: 200N
- Adjustable clamping force
- Works with electronic documentation system (JetLogger)
- 110/240V Power supply (No need to charge or change batteries)
- Table bracket - For safe installation on working table
- Metal drive wheel for <2.5mm cable
- Softstart: Enables an even smoother start protecting the fiber
- Memory: The last inserted data like pushing force will stay in the memory even if the device will be switched off or the battery needs to be exchanged
- Service info: Memory of total milage/distance since the machine was taken into operation
- Duct air temp: Display showing the air temperature injected into the duct
Available with and without JetLogger Documentation System.

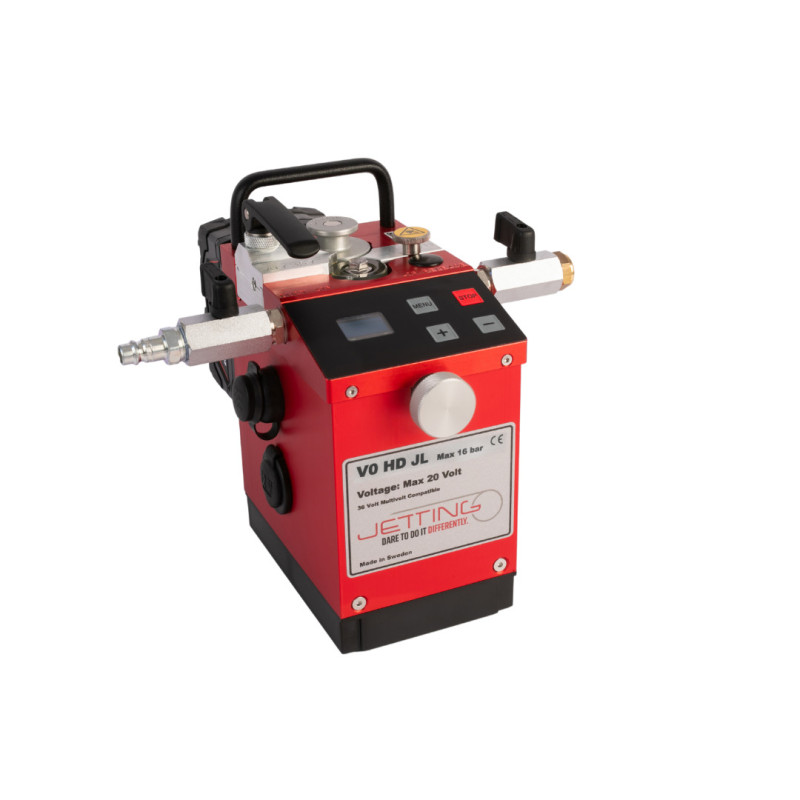

V0 HD Fibre Blowing Machine
