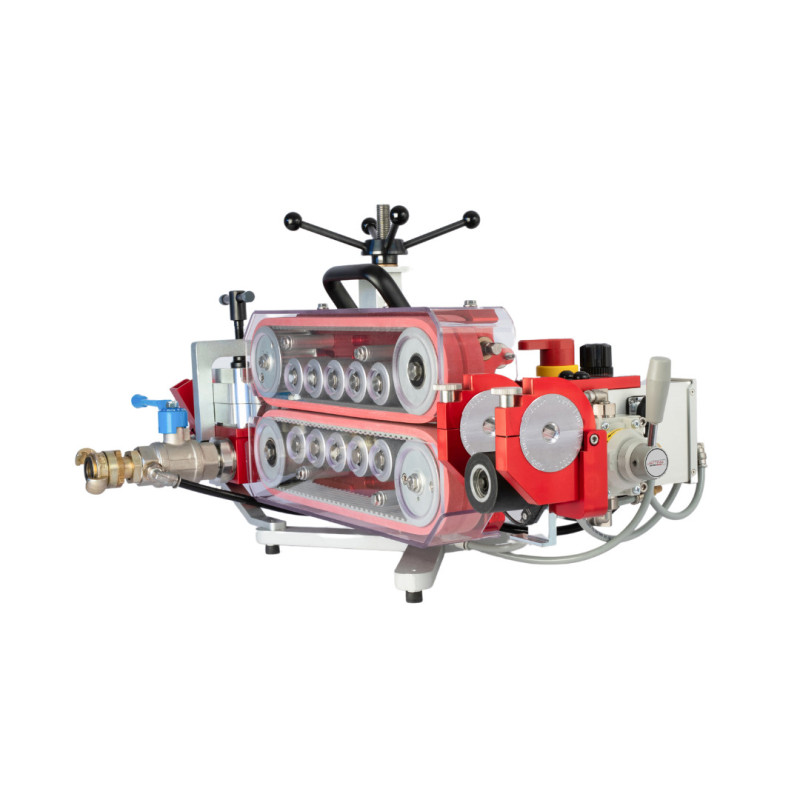

The V3 Fiber Blowing Machine 1000N is a robust and powerful, pneumatic operated fiber blowing machine designed for single cables and for relining of multiple microducts. Configuration can be made for cables between 4 and 40mm, making it ideal for both microfiber cable installations and backbone installations, with duct dimensions between 10 and 63mm. The unique joystick controller and agile motors ensure optimal control of the installation. With an anodized aluminum construction, the machine is lightweight yet exceptionally strong.

V3 Fiber Blowing Machine 1800N is also available which is stronger and can do subducting, rodd pushing and floating but is slower at blowing fibre (50m/min).

Features & Benefits

• Pneumatic operation with double motors
• Gentle operation with long contact surface on the cable
• Display for speed, distance and pressure in duct
• Max. speed 110m/min (360ft./min), max pushing force on cable 1000N (225lbf)
• Adjustable clamping force
• Works with JetLogger
• Joystick Controller with forward and reverse function
