TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Copper ethernet cabling technology | 10Base-T,1000Base-T |
| Depth | 220 mm |
| Fiber ethernet cabling technology | 1000BASE-X |
| Firmware upgradeable | Y |
| Flow control support | Y |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Heat dissipation | 1052.94 BTU/h |
| Height | 44 mm |
| MAC address table | 8000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 4.1 MB |
| Power over Ethernet (PoE) | Yes |
| Power source | AC |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Security algorithms | HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS |
| Source data-sheet | . |
| Spanning tree protocol | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| User guide | Y |
| Web-based management | Y |
| Width | 440 mm |
Specific References
- EAN13
- 6935364030650

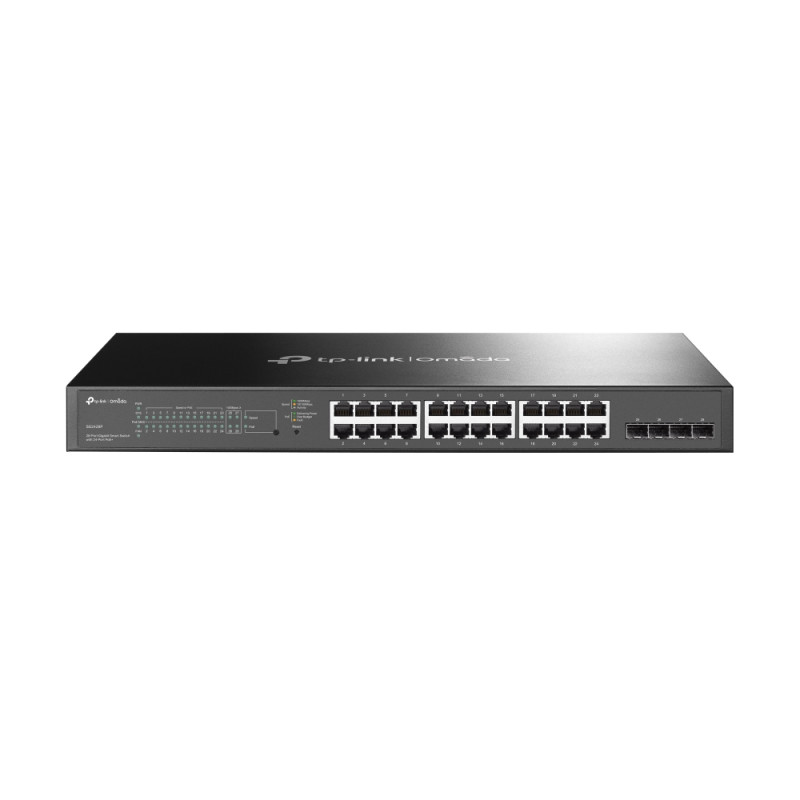

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
24× 10/100/1000 Mbps PoE+ RJ45, 4× Gigabit SFP Slots, 56 Gbps, 8K MAC, 9 KB Jumbo, 440×220×44 mm
€454.55
€369.55 Ex. VAT
