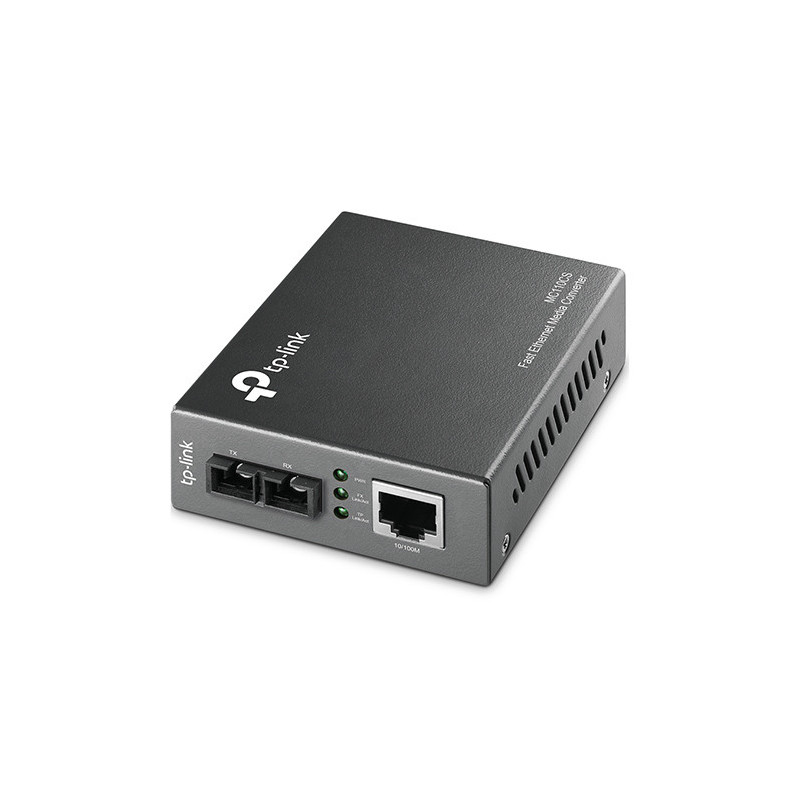

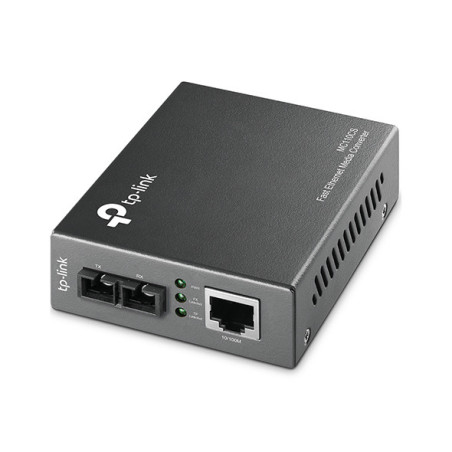

P-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
  • P-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
  • P-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
  • P-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
Reasons to Buy
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Extends fiber distance up to 12.5 miles (20km)


Technical Headlines
  • Wired
  • 100 Mbit/s 12500 m 1310 nm
  • 10BASE-T, 100BASE-FX, 100BASE-T
  • Ethernet LAN (RJ-45) ports: 1
  • Single-mode Fiber ports quantity: 1 SC
  • Black


The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).
Auto MDI/MDI-X Yes
Cable types supported Cat3, Cat4, Cat5
Connectivity technology Wired
Copper ethernet cabling technology 10BASE-T, 100BASE-FX, 100BASE-T
Depth 73 mm
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100 Mbit/s
Fiber optic connector SC
Height 27 mm
Internal No
LED indicators Yes
Maximum data transfer rate 100 Mbit/s
Maximum transfer distance 12500 m
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Wavelength 1310 nm
Width 95 mm
Harmonized System (HS) code 85176990
Compliance certificates RoHS

Specific References

EAN13
6935364030407

TP-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black

TP-Link MC110CS, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, 10,100 Mbit/s, 10BASE-T, 100BASE-FX, 100BASE-T, Full, Half, Cat3, Cat4, Cat5
In Stock
€27.79
€27.79 Ex. VAT
Reference: MC110CS
