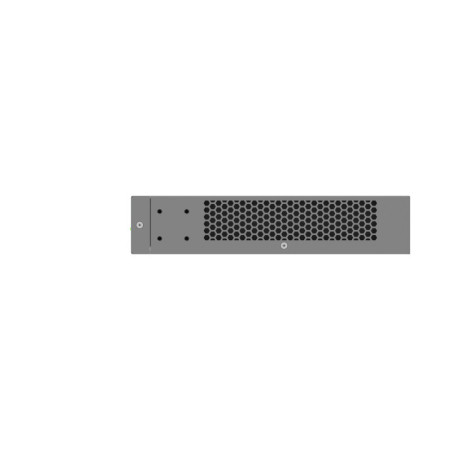

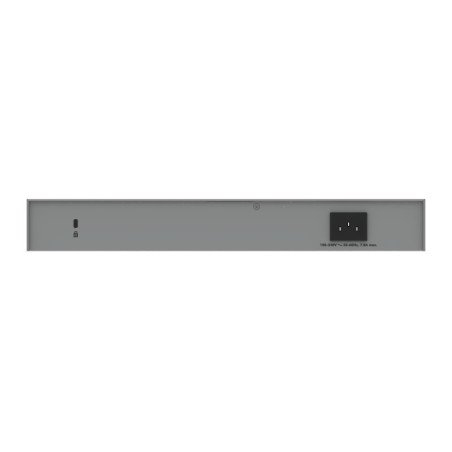

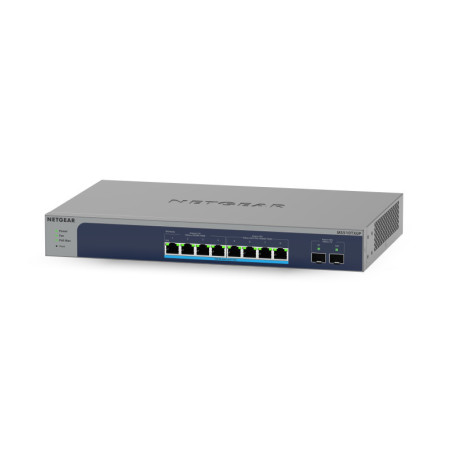

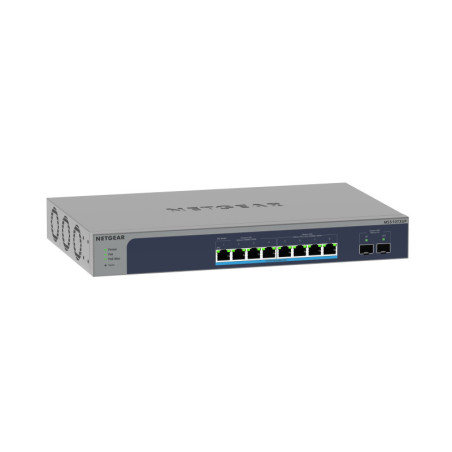

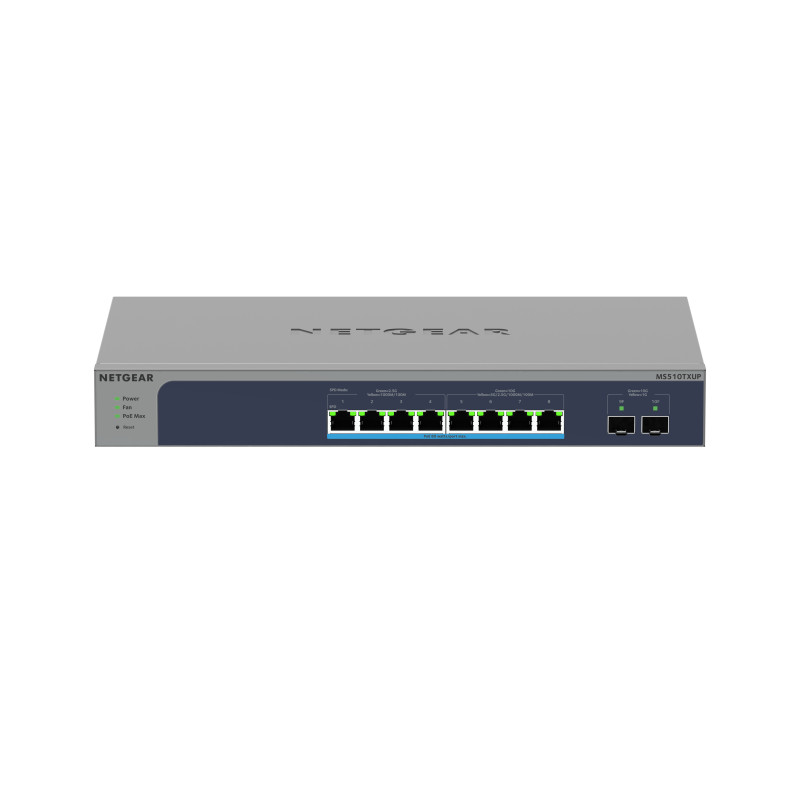

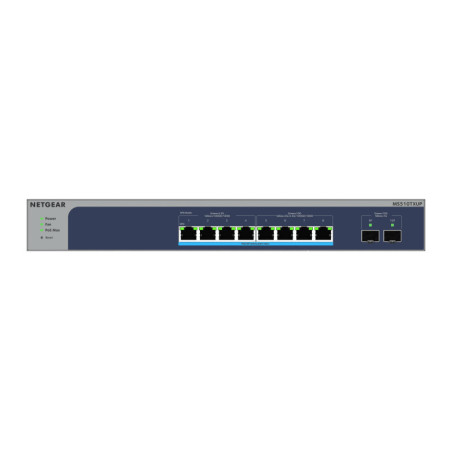

Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
  • Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)
NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase. - Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices. - 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+). - 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port). - Layer 3 static routing with 32 routes (IPv4 and IPv6). - Uninterrupted PoE and advanced per port PoE controls. - NETGEAR Insight Cloud management activation (1-Year Insight subscription is included). - Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
10G support Yes
Basic switching RJ-45 Ethernet ports quantity 8
8
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
10G Ethernet (100/1000/10000)
Built-in processor Y
Yes
Cables included AC
AC
Depth 206 mm
Firmware upgradeable Y
Yes
Flash memory 64 MB
64 MB
Heat dissipation 1294.5888 BTU/h
1294.5888 BTU/h
Height 43 mm
Internal memory 256 MB
256 MB
LED indicators Activity,Fan fail,Link,PoE,Power,Speed
Activity, Fan fail, Link, PoE, Power, Speed
MAC address table 32000 entries
32000 entries
Mean time between failures (MTBF) 1059519 h
1059519 h
Networking standards IEEE 802.1D,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Noise level 33 dB
33 dB
Non-operating altitude 0 - 3000 m
0 - 3000 m
Number of VLANs 256
256
Operating altitude 0 - 3000 m
0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
0 - 95%
Operating temperature (T-T) 0 - 50 °C
Packet buffer memory 2 MB
2 MB
Power over Ethernet (PoE) Yes
Yes
Quality of Service (QoS) support Y
Yes
Rack mounting Yes
Yes
Storage relative humidity (H-H) 0 - 95 %
0 - 95%
Storage temperature (T-T) -20 - 70 °C
-20 - 70 °C
Switch layer L2+
L2+
Switch type Managed
Managed
Switching capacity 140 Gbit/s
140 Gbit/s
User guide Y
Yes
Web-based management Y
Yes
Weight 2.51 kg
Width 330 mm
Cloud-managed Yes
Harmonized System (HS) code 85176990

MS510TXUP-100EUS.pdf

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP) Data Sheet

Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)

Managed, L2+, 4x 1G/2.5G, 4x 1G/2.5G/5G/10G, 2x SFP+, 8 PoE++, 330.2 x 206.3 x 43.2 mm
Out of Stock
€1,169.32
€950.67 Ex. VAT
Reference: MS510TXUP-100EUS
