More Info
Details

Reasons to Buy

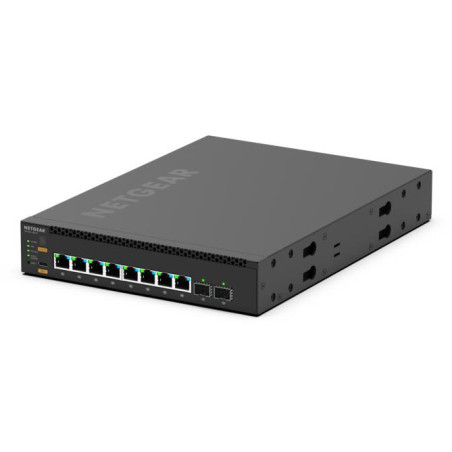

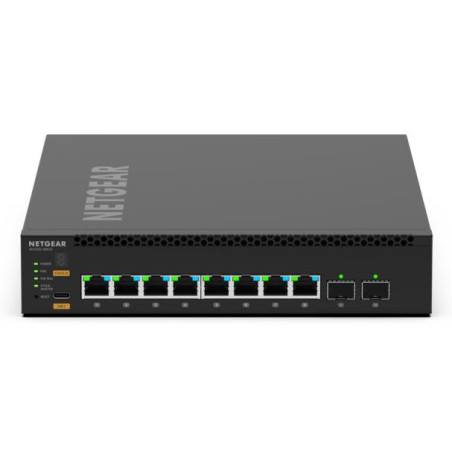

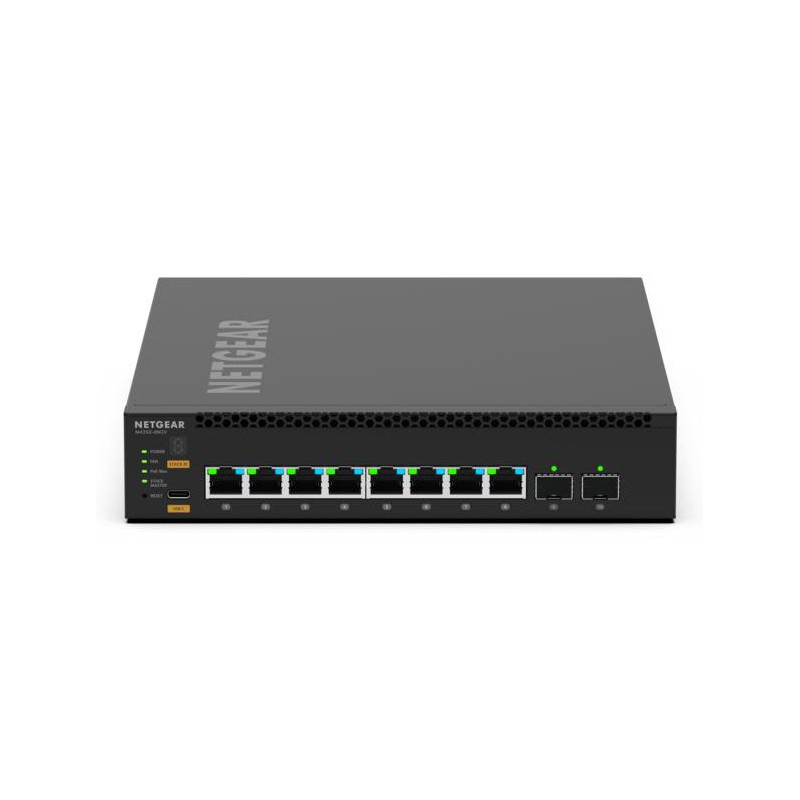

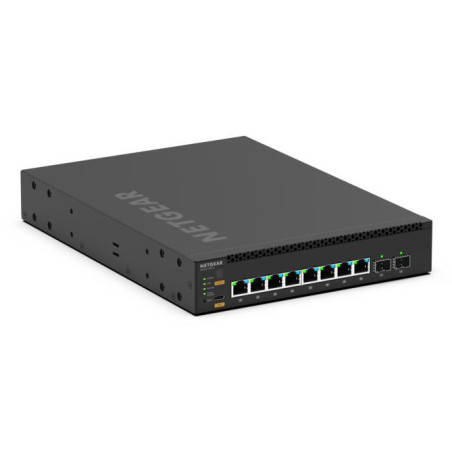

8 2.5G PoE++ ports with 2 25GBASE-X SFP28 uplinks.
Comes with one APS254W power adapter providing 119W of base PoE budget.
Half-width form factor enables one or two switches in a single rack space
Up to three APS254W power adapters provide up to 551W PoE budget and/or N+1 redundancy
The PoE budget can reach 551W, when the redundant PoE budget is 119W (1+1) or 322W (2+1).
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
Layer 3 feature set includes static, policy-based, and dynamic routing.
NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.

Technical Headlines

Managed L3 Web-based management SNMP V1, V2, V3
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 16000 entries Switching capacity: 140 Gbit/s
Access Control List (ACL)
1U Rack mounting Stackable
AC Power supply included Power over Ethernet (PoE)

POWER AND THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

PRO AV RESOURCES
All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

10G support	No
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Built-in processor	Yes
Cables included	AC, USB Type-C
Depth	300 mm
Flash memory	512 MB
Flow control support	Yes
Form factor	1U
Full duplex	Yes
Height	43.2 mm
Internal memory	2048 MB
Latency (10 Gbps)	2.27 µs
LED indicators	Yes
MAC address filtering	Yes
MAC address table	16000 entries
Management protocols	SNMP V1, V2, V3
Memory type	DDR4-SDRAM
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
Non-operating altitude	0 - 3000 m
Number of VLANs	4093
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 45 °C
Packet buffer memory	32 MB
Power consumption (typical)	133.5 W
Power over Ethernet (PoE)	Yes
Power source	AC
Power supply	550 W
Processor model	ARM Cortex-A57
Quality of Service (QoS) support	Yes
Quick start guide	Yes
Rack mounting	Yes
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
Stackable	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-20 - 70 °C
Store-and-forward	Yes
Switch layer	L3
Switch type	Managed
Switching capacity	140 Gbit/s
Throughput	372 Mpps
Web-based management	Yes
Weight	2.9 kg
Width	220 mm
Sustainability compliance	Yes
SFP28 ports quantity	2
IGMP proxy	Yes
IPv4 routes	512
IPv6 routes	256
2.5G Ethernet (copper) ports quantity	8
10G Ethernet (copper) ports quantity	8
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Power over Ethernet 4PPoE (PoE++) ports quantity	48
6to4 tunnel	Yes
