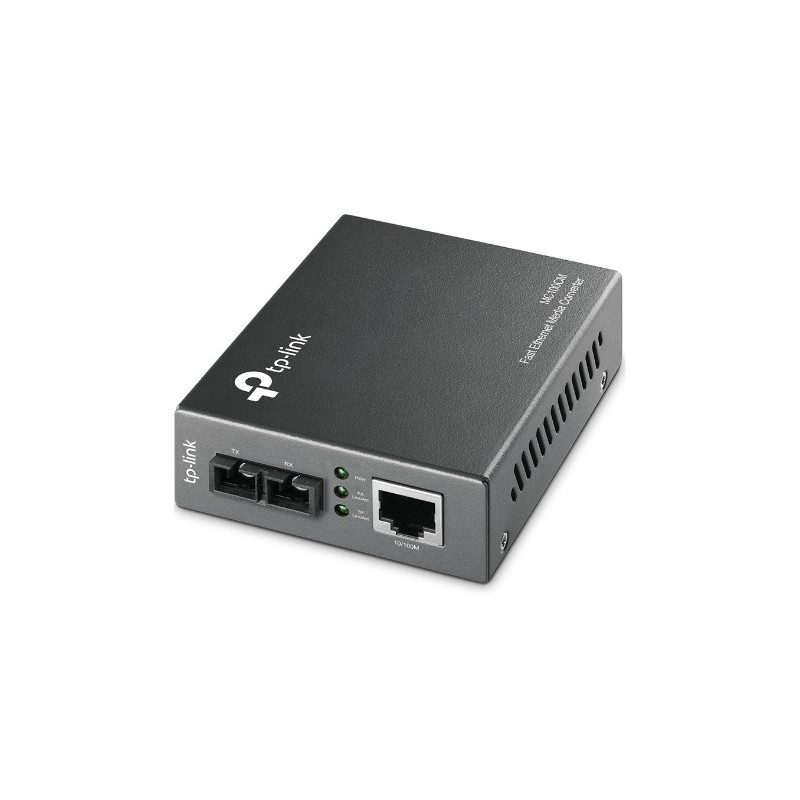

• TP-LINK MC100CM 10/100Mbps Multimode Media Converter
  • TP-LINK MC100CM 10/100Mbps Multimode Media Converter
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.

- Extends fiber distance up to 2km



The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.



Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK’s 19’’ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.



Cabling technologyUTP 3, 4, 5e, 5
CertificationFCC, CE
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Connectivity technologyWired
Dimensions (WxDxH)94.5 x 73 x 27 mm
Full duplexYes
I/O ports1x 100M SC 1x 100M RJ45
LED indicatorsPWR, FDX/Col, Link/Act, SPD
Maximum transfer distance2000 m
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Wavelength1310 nm
EAN6935364030391
ManufacturerTP-LINK
