| Antennas quantity | 6 |
| Depth | 58.6 mm |
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Ethernet LAN | Yes |

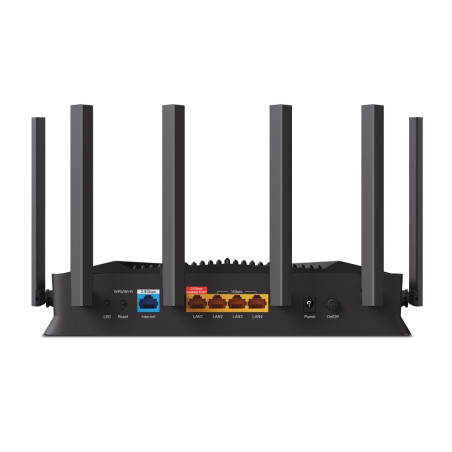

| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Firewall | Yes |
| Firmware upgradeable | Yes |
| Height | 268.6 mm |
| Modulation | 4096-QAM, OFDMA |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output voltage | 12 V |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Source data-sheet | Icecat.biz |
| Universal Plug and Play (UPnP) | Yes |
| USB port | Yes |
| VPN support | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| Web-based management | Yes |
| Weight | 650 g |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be), Wi-Fi 5 (802.11ac) |
| Width | 153.1 mm |
| Ethernet WAN | Yes |
| WLAN data transfer rate (max) | 5765 Mbit/s |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 5765 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Port triggering | Yes |
| MU-MIMO technology | Yes |
| Support Samba (storage) | Yes |
| Mobile network generation | Not supported |
| Antenna design | External |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Media server | Yes |
Specific References

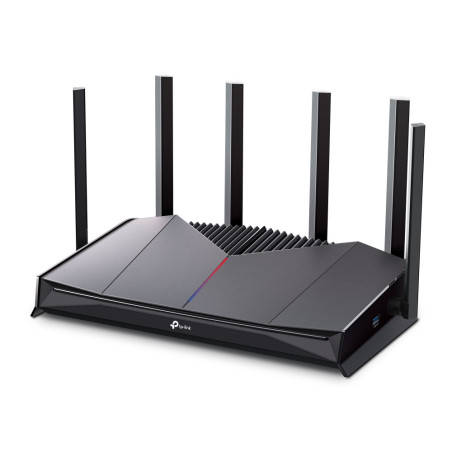

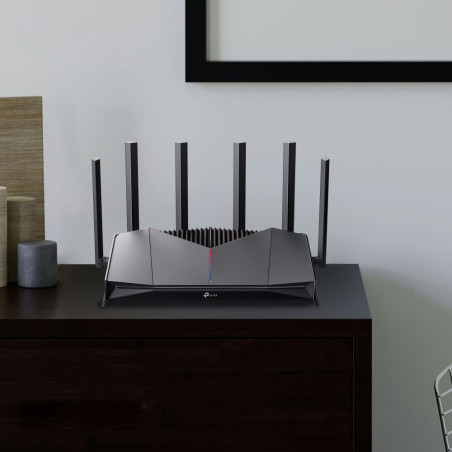

TP-Link BE6500 Dual-Band Wi-Fi 7 Gaming Router Data Sheet
