550mm Deep RackyRax Wall Mounted Data Cabinet
  • 550mm Deep RackyRax Wall Mounted Data Cabinet


The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.

The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles.

A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.

Details:

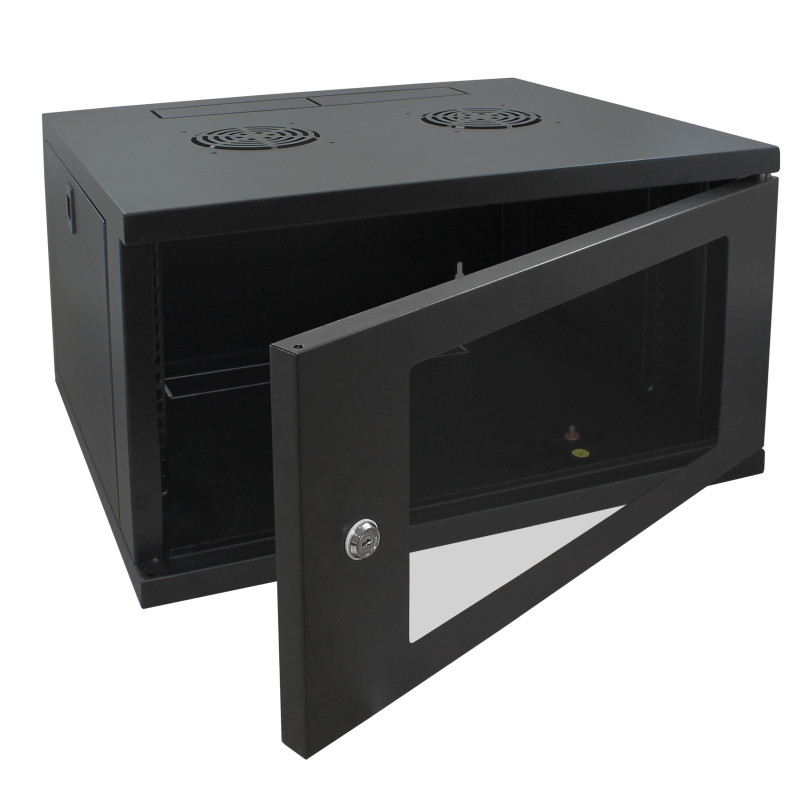

6u 450mm Deep Data Cabinet shown for illustration

Features:

  • Supplied fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Lockable and removable sides
  • Cable access top and bottom
  • Lockable glass front door

Dimensions By U Height

U Height Size (HxWxD) Net Weight
6U 348x550x550 mm 15.5 Kg
9U 481x550x550 mm 19 kg
12U 615x550x550 mm 22.5 Kg
15U 748x550x550 mm 26 Kg
18U 881x550x550 mm 29.5 Kg
21U 1015x550x550 mm 33 Kg

Maximum Internal Depth is 440mm
Cable Entry Top & Bottom
Colours Black
Construction Welded
Depth 550mm
Front Door Type Glass Lockable/Removable
Internal Working Depth 440mm
Mounting Profiles 19" Adjustable Front & Rear
Side Panels Removable
Width 550mm

RackyRax 550mm Deep Wall Mounted Data Cabinet

550mm Deep Wall Mounted Network Data Cabinets - Available in Black from 6U to 15U
In Stock
€160.06
€130.13 Ex. VAT
Reference: RR-W2-6-G
Height
Flat Pack
Quantity
