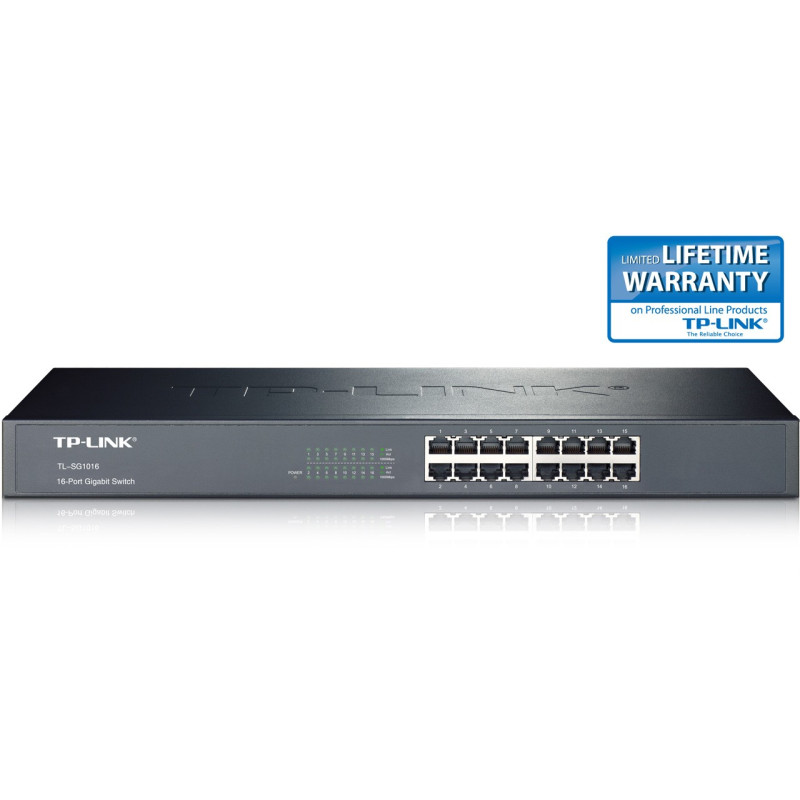

TP-LINK TL-SG1016 16-Port Gigabit Switch
  • TP-LINK TL-SG1016 16-Port Gigabit Switch
  • TP-LINK TL-SG1016 16-Port Gigabit Switch
What This Product Does

The TL-SG1016 16-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.



Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG1016 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



Superior Performance

The TL-SG1016 features non-blocking wire-speed architecture with a 32Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.



Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new product TL-SG1016 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.



Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.



Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length.



Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 16
Colour of product Black
Connectivity LEDs Yes
Connectivity technology Wired
DHCP client Yes
Dimensions (WxDxH) 440 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity 16
Flow control support Yes
Full duplex Yes
Input frequency 50/60 Hz
Installed ports 16
LED indicators Yes
MAC address filtering Yes
Management Unmanaged
Maximum data transfer rate 32 Gbit/s
Mounting Rackmount
Operating temperature (T-T) 0 - 40 °C
Operating temperature range (T-T) 0 - 40 °C
PoE No
Ports quantity 16
Power over Ethernet (PoE) No
Power over Ethernet (PoE) support No
Power requirements AC 100 - 240 V
Quality of Service (QoS) support Yes
RJ45 Ports Qty 16
Source data-sheet Icecat.biz
Spanning tree protocol Yes
Stackable No
Storage temperature (T-T) -40 - 70 °C
Storage temperature range (T-T) -40 - 70 °C
Store-and-forward Yes
Switch Speed Gigabit
Switch type Unmanaged
