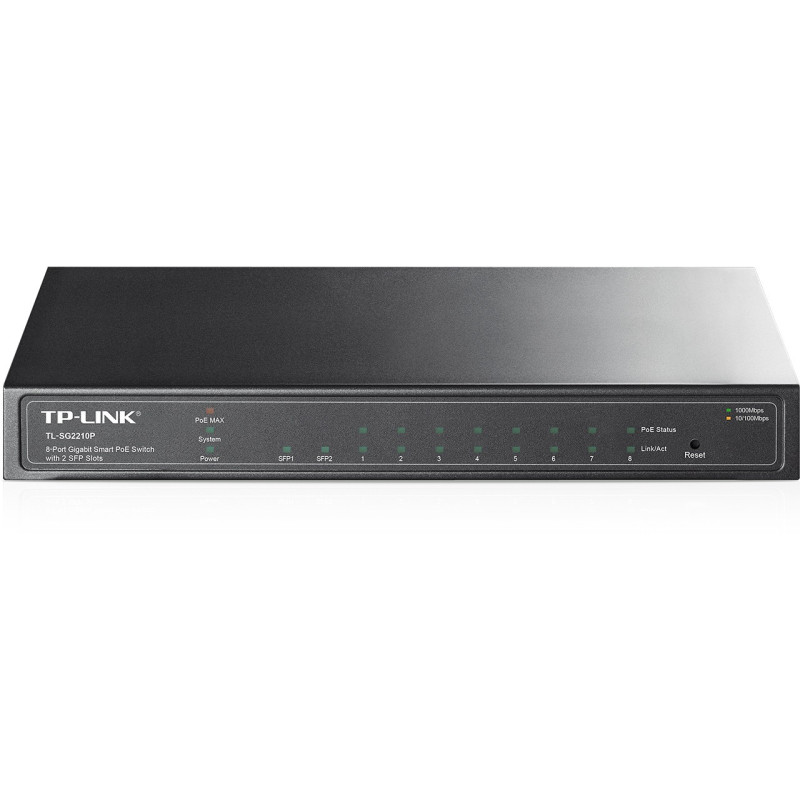

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • Features 8 PoE+ ports, with total PoE power budget of 58W* and useful PoE power management features
  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
  •  L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
  •  Innovative energy-efficient technology saves up to 50% of power consumption


What This Product Does
TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK's Gigabit Smart Switch TL-SG2210P is specially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.


IEEE 802.3af/at-compliant Power over Ethernet
The TL-SG2210P supports 8 ports of IEEE 802.3af/at-compliant PoE and has a total power supply of 58W* to power any 802.3af/at compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones, and other PoE-powered devices while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.


Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. The administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter-free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.


Abundant Layer 2 Features
For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics, and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access.


Enterprise Level Management Features
TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cables included AC
Certification FCC, RoHS
Colour of product Black
Compatible operating systems Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,10BASE-T
Depth 126 mm
Fiber ethernet cabling technology 1000BASE-X,100BASE-FX
Fiber optic connector SFP
Fiber type Multi-mode
Flow control support Yes
Height 26 mm
LED indicators Link,PoE,Power
MAC address filtering Yes
MAC address table 8000 entries
Management Smart Managed
MIB support Yes
Minimum system requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Mounting Desktop
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs 512
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 0.5 MB
PoE Yes
PoE Ports Qty 8
Power consumption (typical) 53 W
Power over Ethernet (PoE) Yes
Quality of Service (QoS) support Yes
Quick start guide Yes
RJ45 Ports Qty 8
Security algorithms SNMP,SSH,SSH-2
SFP Ports Qty 2
Spanning tree protocol Yes
Stackable No
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2
Switch Speed Gigabit
Switch type Managed
Switching capacity 20 Gbit/s
Throughput 14.9 Mpps
Web-based management Yes
Width 209 mm
