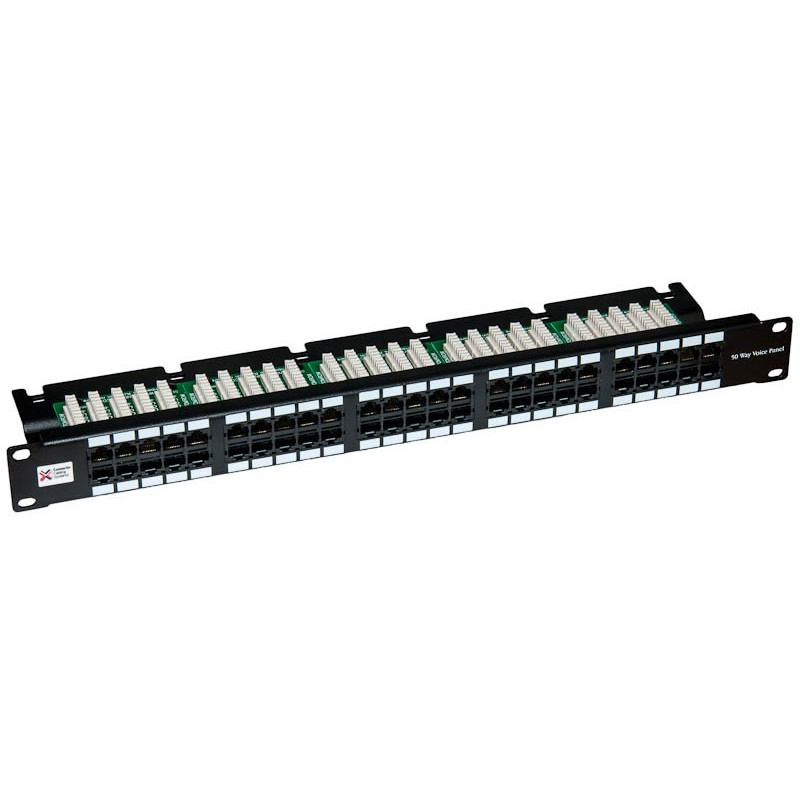

50 Way CCS 19" Voice Patch Panel

Cabinet space is too valuable to have it taken up by stacks of voice panels, which is why Connectix offer a high density voice panel packing 50 dedicated voice ports in a 1u panel.

Each 8 way RJ45 socket has three pairs connected. This ensures that the panels can be used with analogue, digital and ISDN systems

Features:

  • 50 voice ports in 1u
  • 8 way RJ45 sockets with three pairs connecte
  • Analogue, digital and ISDN systemssupported



Specification

  • Width - 483mm (19”)
  • Depth - 120mm
  • Height - 1U (44mm)
  • Fixing Centres - 467mm
  • Material - 1.5mm thick mild steel CR4 BS1449
  • Finish - Black powder coat to BS6496
  • Socket Labels - Silk screened blocks
  • IDC Labels - Pairs indicated by PIN numbers
  • RJ45 Sockets - 2 x 5 unshielded stacked RJ45 jacks
  • IDC Blocks - Industry standard 4 way IDCs
  • PCB - 1.6mm double sided PTH boards
  • Wiring Specification - Pairs 1, 2 & 3 connected straight through Pair 4 not connected
Depth120mm
Height44mm (1u)
Width483mm (19")
