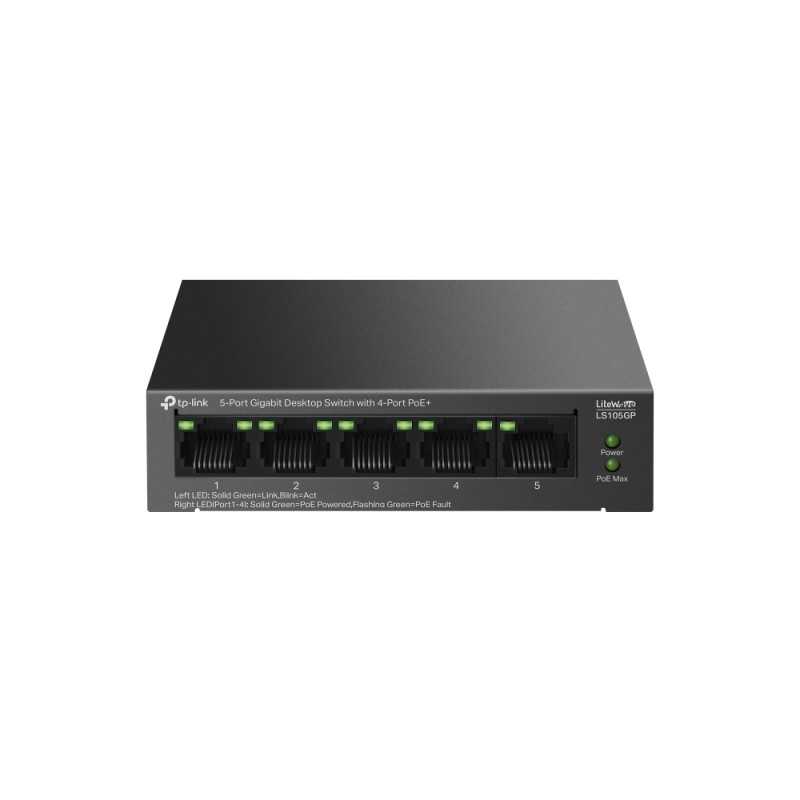

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
10G support No
AC input frequency 50 Hz
AC input voltage 220 V
Auto MDI/MDI-X Y
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat3,Cat5e,Cat4,Cat5
Certification CE, FCC, RoHS
Depth 98 mm
Flow control support Y
Heat dissipation 253.16 BTU/h
Height 25 mm
LED indicators Y
MAC address table 2000 entries
Networking standards IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power source DC/PoE
Quality of Service (QoS) support Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch type Unmanaged
Switching capacity 10 Gbit/s
User guide Y
Width 99.8 mm

Specific References

EAN13
4895252504552

Download

ls105gp.pdf

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ Data Sheet

Download (5.07MB)

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+

5× 10/100/1000 Mbps RJ45, PoE+ 65W, 10 Gbps, 7.44 Mpps, 2K MAC, 16 KB Jumbo, 99.8x98x25 mm
Out of Stock
€68.05
Tax included
Reference: ls105gp
