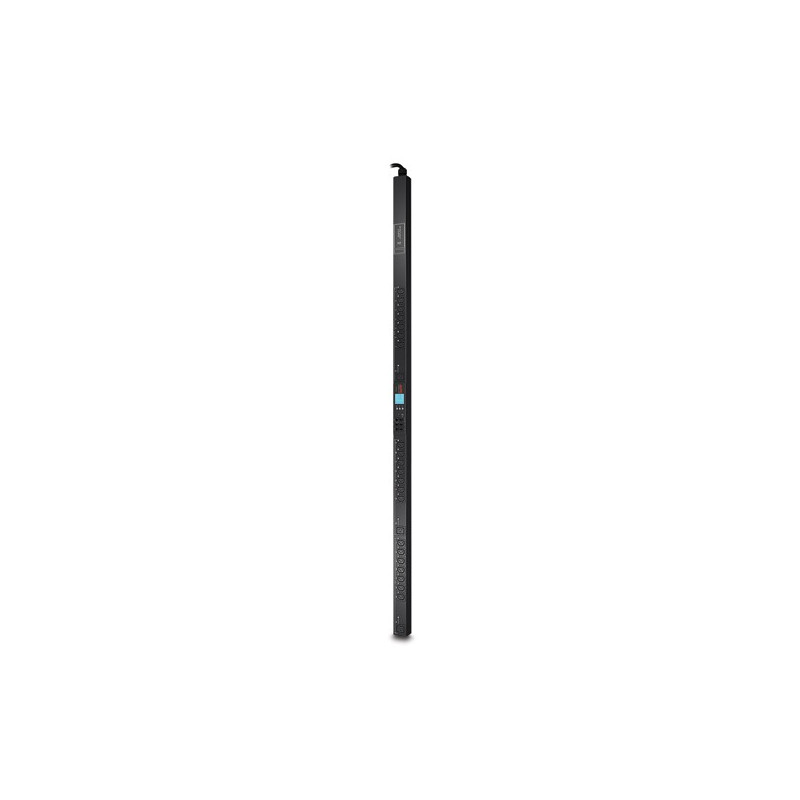

APC Switched Plus Rack PDU AP8661
  • APC Switched Plus Rack PDU AP8661
  • APC Switched Plus Rack PDU AP8661
Network Management

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).



Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)



Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)



Power Delays

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.



Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.



Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)



Integrates with InfraStruXure Central

An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
AC outlets quantity 24 AC outlet(s)
Cable length 3 m
Certification cUL,FCC Part 15 A,ICES-003,UL,VCCI A
Colour of product Black
Dimensions (WxDxH) 56 x 51 x 1829 mm
Input frequency 50/60 Hz
Maximum current 20 A
Nominal input voltage 208 V
Nominal output voltage 208 V
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 95 %
Operating relative humidity range 5 - 95 %
Operating temperature (T-T) -5 - 45 °C
Operating temperature range (T-T) -5 - 45 °C
Package dimensions (WxDxH) 162 x 118 x 2038 mm
Package weight 9410 g
PDU types Switched
Power plug NEMA L21-20P
Rack mounting 0U
RoHS compliance Yes
Storage relative humidity (H-H) 5 - 95 %
Storage relative humidity range 5 - 95 %
Storage temperature (T-T) -25 - 65 °C
Storage temperature range (T-T) -25 - 65 °C
Weight 7140 g

Similar products

  • APC Switched Rack PDU
    APC Switched Rack PDU
  • APC AP8881
    APC AP8881
  • APC AP8953
    APC AP8953
  • APC AP8959EU3
    APC AP8959EU3
  • APC PDU 2G
    APC PDU 2G

APC AP8661

Rack PDU 2G, Switched Plus, ZeroU, 5.7kW, 208V, (21) C13 & (3) C19

AP8661

Out of Stock

€2,660.11
€3,271.93 Inc VAT.
